x4 600mm x 750 newton gas struts & brackets

SKU : 362727708581
$79.00

Available



Details

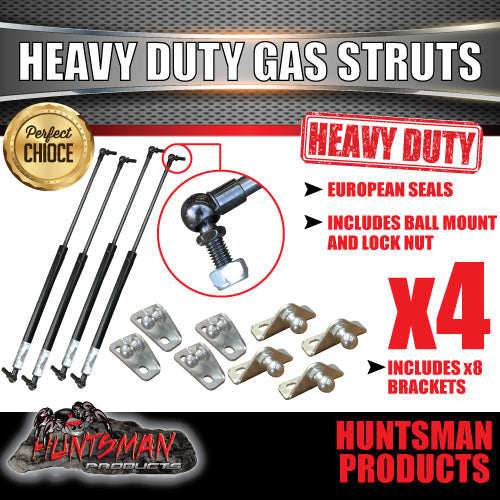

X4 600mm x 750 newton gas struts
x8 13MM BALL GAS STRUT BRACKETS

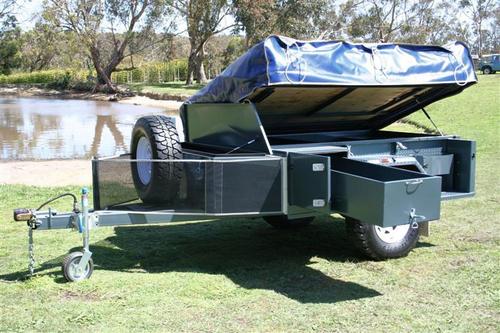

these struts are generally used on camper trailer bed bases up to 90kg

European seals

4x 750 newton x 600mm open shaft gas struts

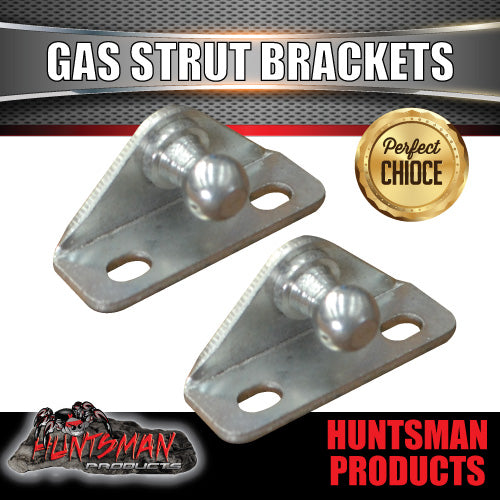

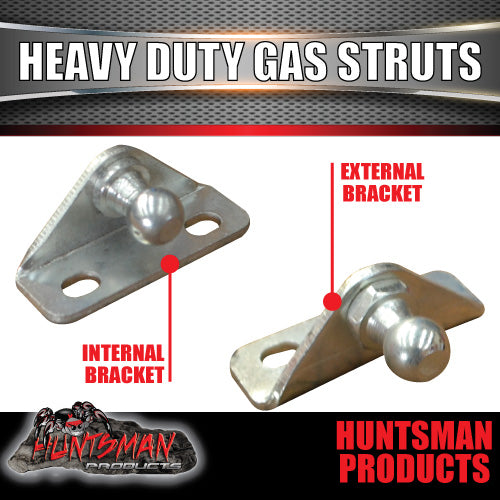

4x internal mount brackets (let us know on ordering if you require all internal or all external brackets)

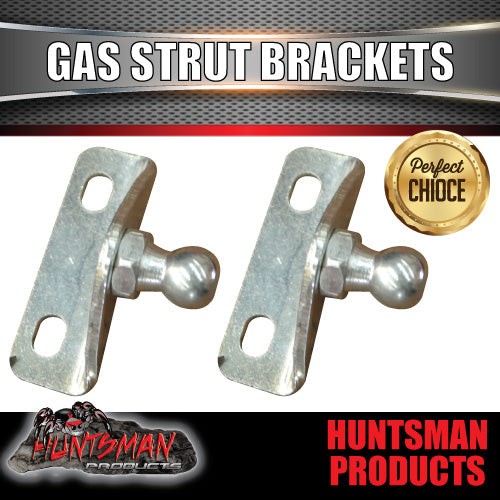

4x external mount brackets (let us know on ordering if you require all internal or all external brackets)
shaft width 10mm

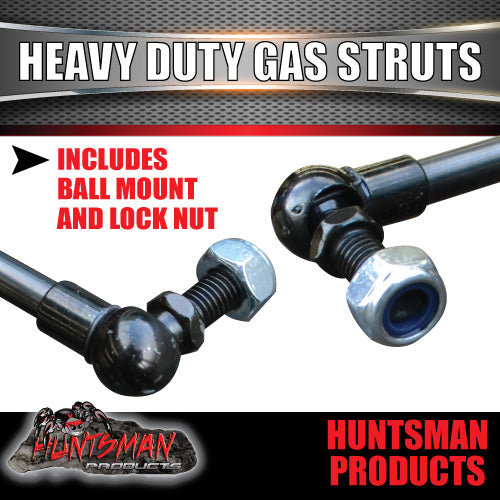

comes with mount ball bolts and nyloc nuts

Image result for CAMPER TRAILER GAS STRUT Drawing stroke length

STROKE LENGTH (A) MM = 260
EXTENDED LENGTH (B) MM = 600
PISTON ROD (D1) MM = 10
PISTON CYLINDER (D2) MM = 22
FORCE RANGE NEWTON = 750


What gas strut do I need?
To calculate the size and the force of the Gas Strut you require for your application use the following guidelines. The extended length of the Gas Strut should be approximately 60% of the door or hatch length - e.g. a 1000mm high door should have a Gas Strut length of approximately 600mm.
