Roadvision LED Rear Combination 6x4 Trailer Plug & Play Easy Install Light Kit. BR207K6x4

ROADVISION COMBINATION LAMPS

BR207K6x4

EASY TO INSTALL PLUG AND PLAY LIGHTS

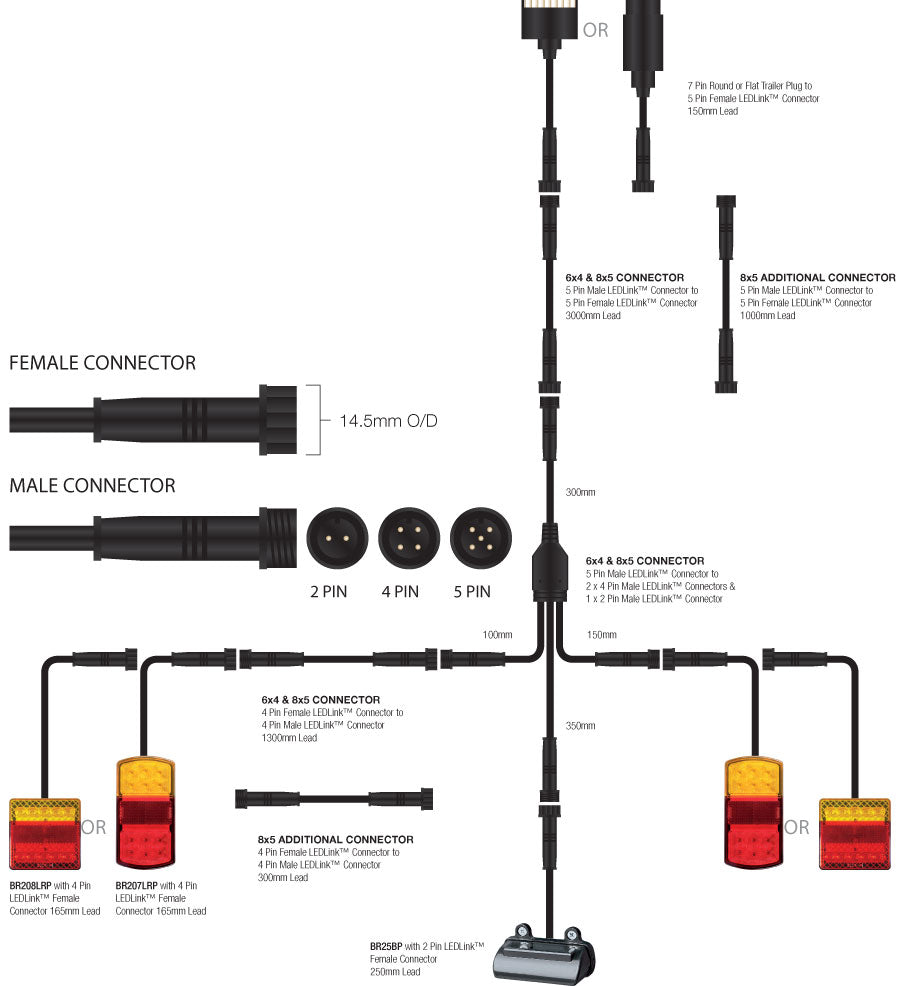

LEDLink™ wiring kits for 6×4 & 8×5 trailers – Using Roadvision’s new LEDLink™ plug and play system, our trailer wiring kits are a complete DIY solution eliminating the need for any cutting, soldering or joining of trailer wiring. Simply mount the lamps, push in and twist the waterproof LEDLink™ connectors, cable tie the harness to the chassis and you’re done. Complete with everything you need… Plug and play wiring harness, pair of rear combination lamps, licence plate lamp and both 7 pin flat or 7 pin large round trailer plugs. Roadvision LEDLink™ trailer kits are simple to install, deliver a perfect installation every time and protect the entire trailer lighting system from corrosion and water ingress. Installing trailer lamps has never been so easy!

INSTALLING TRAILER LAMPS HAS NEVER BEEN SO EASY!

Using Roadvision’s new LEDLink™ plug and play system, our trailer wiring kits are a complete DIY solution eliminating the need for any cutting, soldering or joining of trailer wiring. Simply mount the lamps, push in and twist the waterproof LEDLink™ connectors, cable tie the harness to the chassis and you’re done. Complete with everything you need…

FEATURES

12V input & low current draw

Polycarbonate housing & lens

Easy to install complete DIY plug & play kits

Suitable for the average home handyman

No crimping, soldering or joining of wires

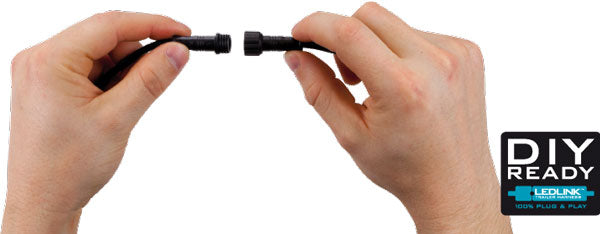

Twist lock plugs provide secure connection

Waterproof with internal O-ring seals

Eliminates harness corrosion from moisture ingress

Available with 207 rect. or 208 square combination lamps

Suitable for 6×4 & 8×5 trailers

7 Pin flat & 7 pin round trailer plug options

ADR / ECE approved

5 Year warranty

ADR/ECE approved for all functions

6×4 TRAILER KITS

BR207K6X4 6×4 LEDLink™ Kit with BR207

BR208K6X4 6×4 LEDLink™ Kit with BR208

8×5 TRAILER KITS

BR207K8X5 8×5 LEDLink™ Kit with BR207

BR208K8X5 8×5 LEDLink™ Kit with BR208

RANGE SPECIFICATIONS

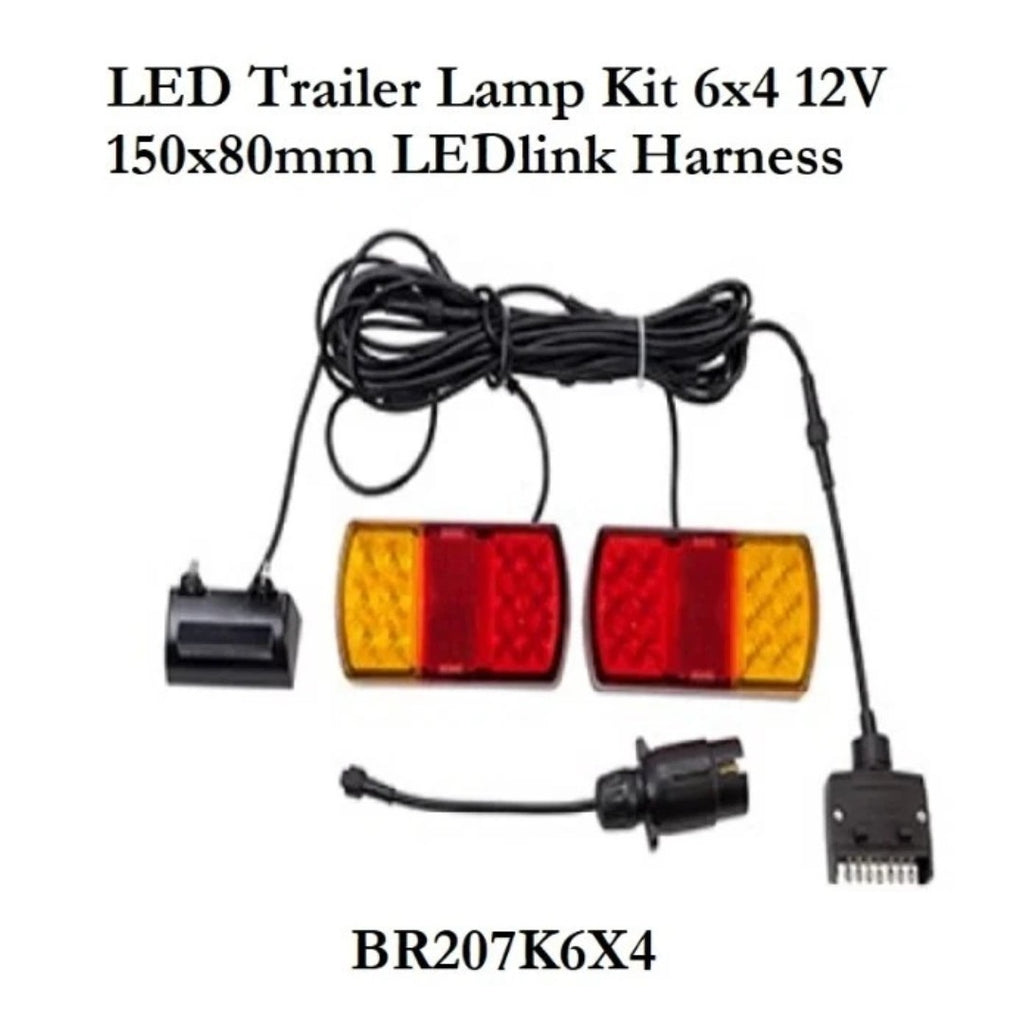

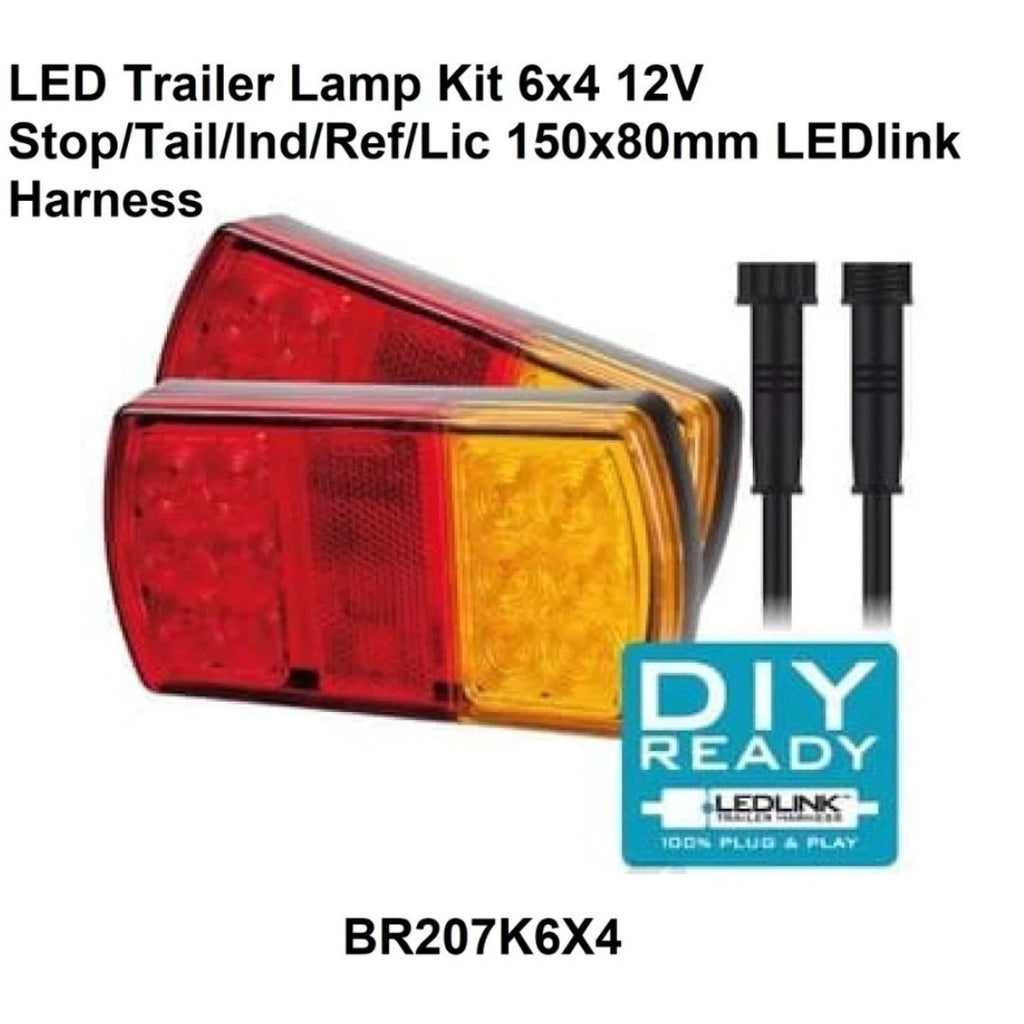

Description: Combination lamp trailer kit LED 207 series 6x4 Stop/Tail/Ind/Ref/Lic rectangle 150 x 80mm + BR25B + 7TPF + 7TPR 6x4 trailer kit with LEDLink™ harness

Voltage Input: 12V DC

Number of LED's: Indicator - 6 LED's, Stop/Tail - 6 LED's, Licence - 6 LED's

Current Draw Amps, Ind -0.09A, S/T - 0.09A/0.02A, Lic - 0.05A @13.8V

Dimensions BR207P 150x80x37mm, BR25BP 81x41x3mm

Lens Construction: Polycarbonate

Housing Construction: Polycarbonate

Mounting Hole Centre: BR207P 100mm Stud Centres,  BR25BP 45mm Centres

Cable Length: LEDLink™ Harness System Suit 6x4 Trailers

ADR Approved

CTA Approved

GUARANTEED WITH A 5 YEAR WARRANTY
