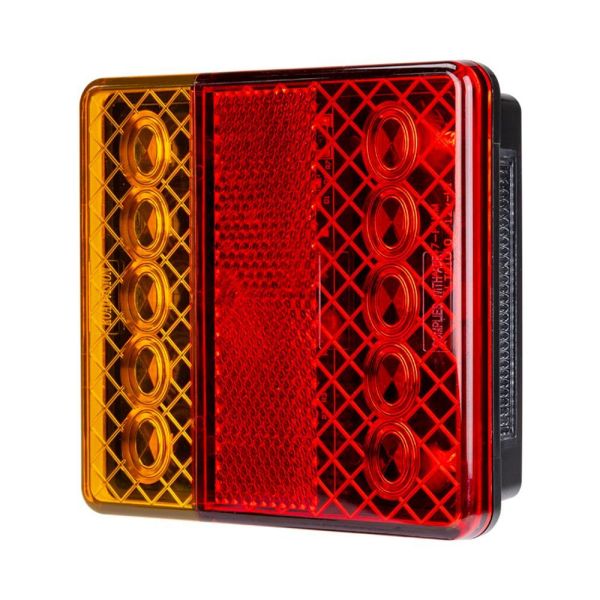

ROADVISION COMBINATION LAMPS
BR208 SERIES

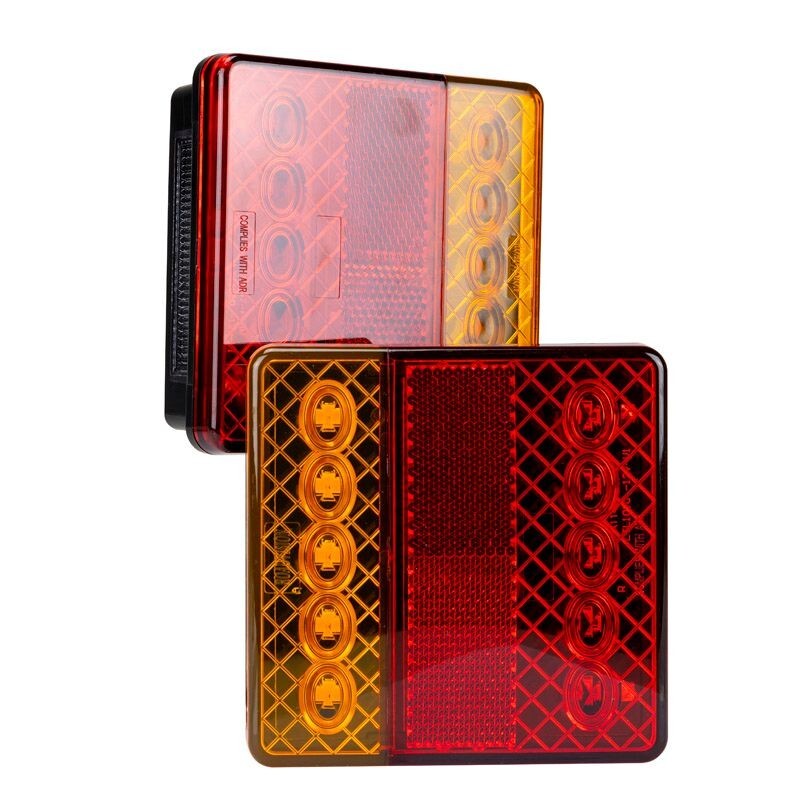

X2 COMBINATION LIGHTS
ROADVISION’s BR208 Series LED rear combination lamps tick all the boxes! A simple DIY trailer lighting kit designed for the budget conscious consumer, delivering the durability of maintenance free LED technology and greater visibility providing increased safety. Roadvision’s BR208 Series combination lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. Fitment is also made easy with integrated twin mounting studs and stainless steel hardware. With ROADVISION it’s FIT & FORGET.
FEATURES – LAMP KIT
BR208LR
Compact LED combination lamp
12V DC input & low current draw
100,000 hour rated LED lifespan with solid state technology
Water & dust proof (submersible)
Sealed polycarbonate lens & housing
Integrated reflector & optional licence plate lamp
Pre-wired with 300mm sheathed tinned copper cable
Easy surface mount stainless steel twin stud installation
Maintenance free
ADR/ECE approved for all functions
RANGE SPECIFICATIONS
Description: Square Stop/Tail/Ind/Ref Twin Pack with License
Functions: Stop/Tail, Indicator & License
Voltage Input: 12V DC
Number of LED's: Indicator - 5 LED's, Stop/Tail - 5 LED's, License - 4 LED's
Current Draw Amps, Ind - 0.09A @ 13.8V, S/T - 0.09/0.05A @ 13.8V

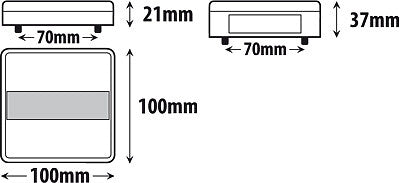

Dimensions 100x100x37mm
Lens Construction: Polycarbonate
Housing Construction: Polycarbonate
Mounting Hole Centre: 70mm Stud Centres
Cable Length: 300mm Tinned Copper
Wiring Colour Codes: Earth - White, Stop - Red, Tail - Brown, Indicator - Green or Yellow
ADR Approved
CTA Approved
GUARANTEED WITH A 5 YEAR WARRANTY
