50mm square 1600Kg Lazy 6 Stud Landcruiser Stud Pattern Trailer Caravan Solid Axle

NATURAL FINISH 50MM SQUARE SOLID COMPLETE LAZY AXLE (1600KG RATED)
6 STUD PATTERN.
PARALLEL BEARINGS


AXLE LENGTHS AVAILABLE
PLEASE NOTE: Minimum clearance from hub face to chassis per side: 155mm
PLEASE NOTE: Hub face to back of Electric backing plate 155mm per side
1700MM TIP TO TIP (1583MM HUB FACE TO HUB FACE)
1750MM TIP TO TIP (1633MM HUB FACE TO HUB FACE)
1800MM TIP TO TIP (1683MM HUB FACE TO HUB FACE)
1850MM TIP TO TIP (1733MM HUB FACE TO HUB FACE)
1900MM TIP TO TIP (1783MM HUB FACE TO HUB FACE)
1950MM TIP TO TIP (1833MM HUB FACE TO HUB FACE)
2000MM TIP TO TIP (1883MM HUB FACE TO HUB FACE)
2050MM TIP TO TIP (1933MM HUB FACE TO HUB FACE)
2100MM TIP TO TIP (1983MM HUB FACE TO HUB FACE)
2150MM TIP TO TIP (2033MM HUB FACE TO HUB FACE)
2200MM TIP TO TIP (2083MM HUB FACE TO HUB FACE)
2250MM TIP TO TIP (2133MM HUB FACE TO HUB FACE)
2300MM TIP TO TIP (2183MM HUB FACE TO HUB FACE)
2350MM TIP TO TIP (2233MM HUB FACE TO HUB FACE)
2400MM TIP TO TIP (2283MM HUB FACE TO HUB FACE)
2435MM TIP TO TIP (2318MM HUB FACE TO HUB FACE)
CUSTOM AXLE LENGTH UP TO 2500MM TIP TO TIP +$50 PER AXLE
Custom Axle lengths will need to be manufactured which will take approx 5 extra business days for dispatch on top of the current dispatch times

AXLE THICKNESS: 50mm solid
PCD: 6/139.7

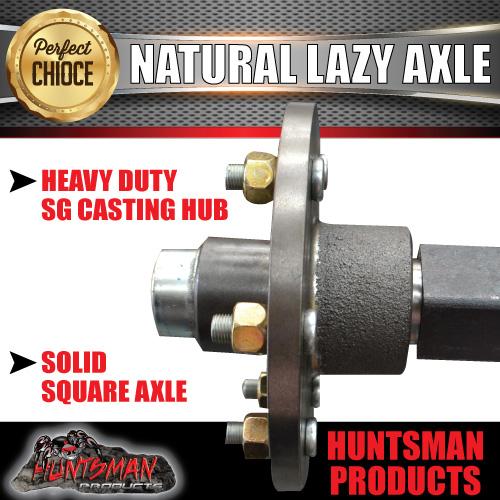

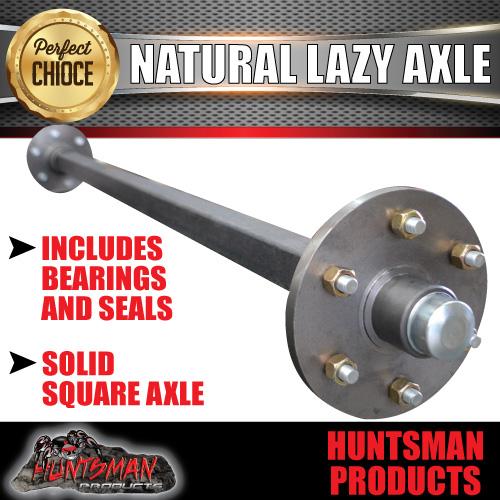

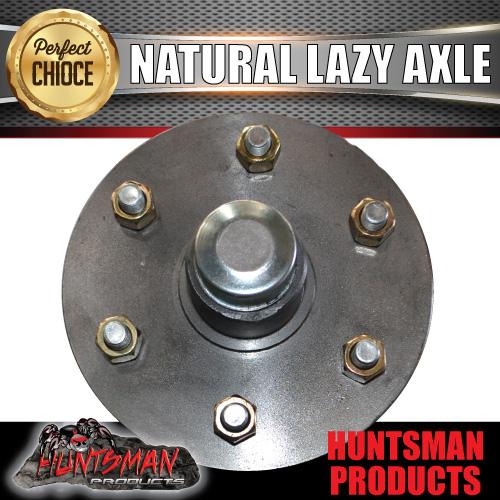

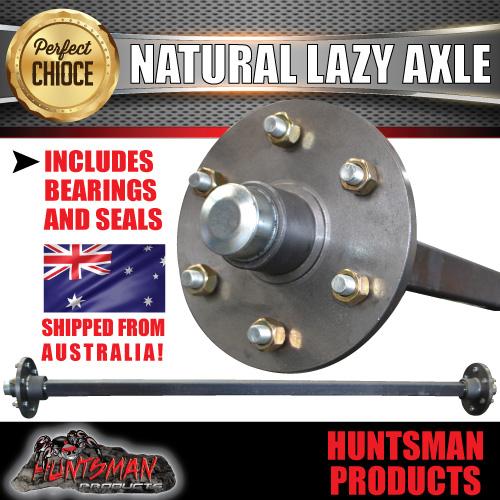

AXLE COMES COMPLETELY ASSEMBLED AS PICTURED.
THIS AXLE USED BY MANY TRAILER, CARAVAN AND CAMPER TRAILER MANUFACTURES AUSTRALIA WIDE.

PARALLEL BEARINGS
68149 INNER
68149 OUTER

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE
JAPANESE MANUFACTURED BEARINGS $50 (CLICK ON THE LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
