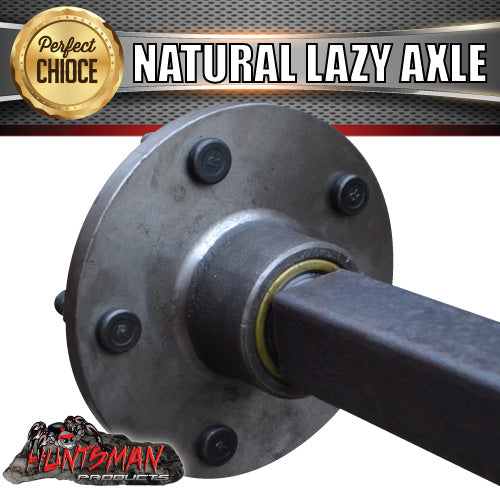

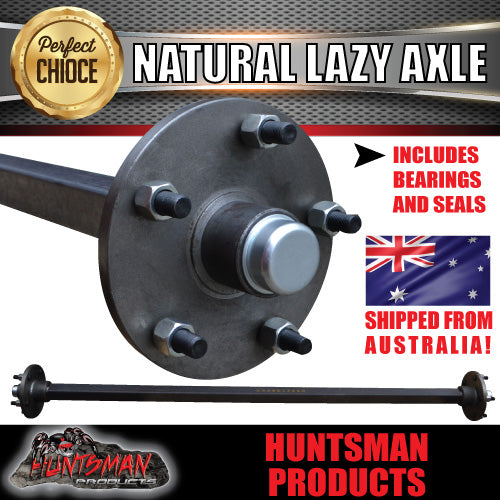

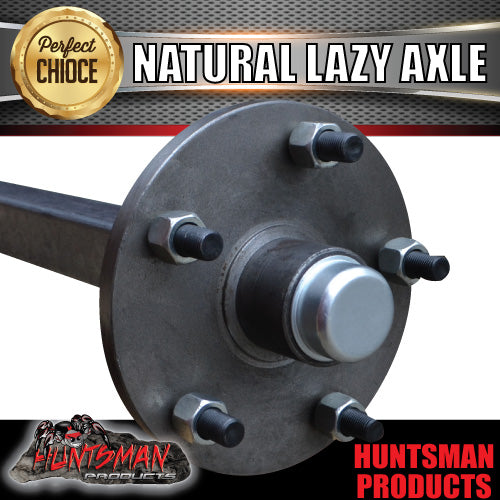

1000Kg Trailer Caravan Solid Lazy Axle 40mm Square Complete 77" - 96" Long

40MM SQUARE SOLID COMPLETE LAZY AXLE
(1000KG RATED)
NOTE: Unbraked Axles Have a Max GTM Capacity of 750KG.

AXLE LENGTHS 77" - 79" ( for shorter axles SKU: 362624000390)


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) +$20
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$20
6 STUD D40/NP300 (6/114.3 PCD, 1/2" STUDS AND NUTS) +$20
5 STUD SUZUKI / F100 (5/139.7, 9/16" STUDS AND NUTS) +$20


AVAILABLE LENGTHS
77", 1955mm TIP TO TIP (1855M HUB FACE TO HUB FACE)
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)


BEARINGS
LM67048/10 INNER & LM11949/10 OUTER
Inner Bearing Diameter 31.75
Outer Bearing Diameter 19.05


AXLE COMES COMPLETELY ASSEMBLED
AUTOMOTIVE GREASE USED ON BEARINGS

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE
