DIY 1400KG camper trailer kit. off road rebound springs, elec brakes, 45mm axles 78" - 96"

DIY OFF ROAD TRAILER KIT
OUTBACK OFFROAD SPRINGS
AXLE LENGTHS 78" - 96" (for smaller length axles item: 170370235553)

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)
D40/NP300/PATHFINDER (6/114.3 PCD, 1/2" STUDS AND NUTS)

AVAILABLE LENGTHS
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)

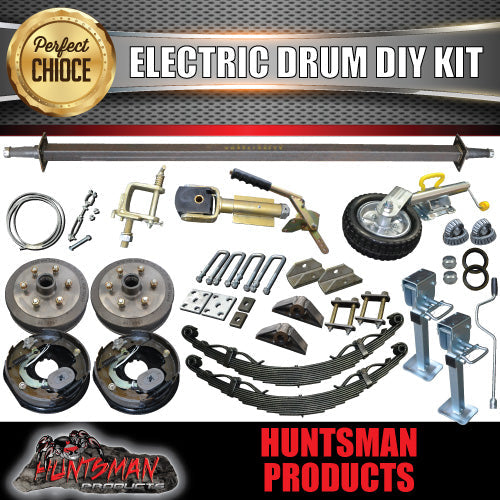

IN THIS KIT
1X 45MM SQUARE SOLID AXLE WITH ELECTRIC BRAKE MOUNTS WELDED, ALSO COMES WITH SPLIT PINS & WASHERS (GIVE SPECIFY HUB FACE TO HUB FACE MEASUREMENT AND WE WILL MATCH IT UP)
AVAILABLE IN 78", 79", 81", 83", 85", 87", 89", 91", 93", 94", 96 ( TIP TO TIP)

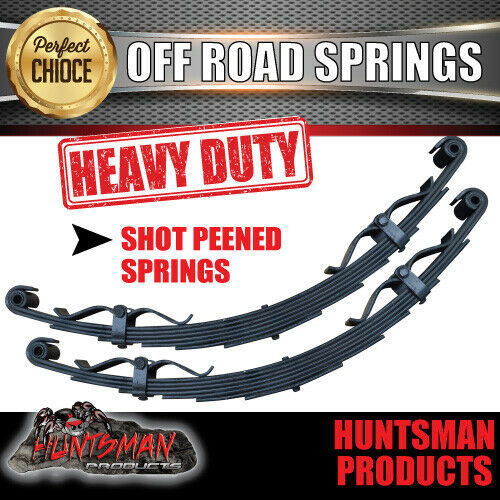

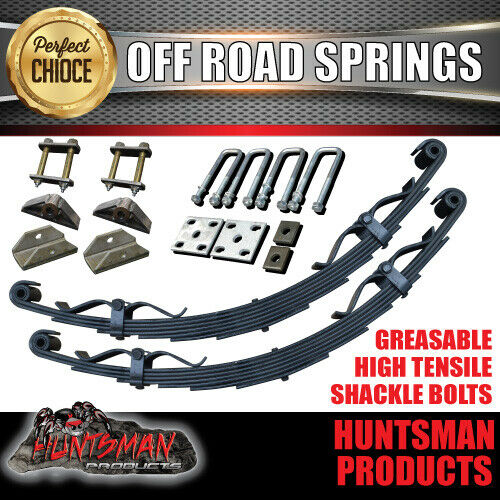

2X 7 LEAF 60MMX7MM OFF ROAD BLACK SPRINGS WITH DAMPNERS (RATED 1600KG) (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)

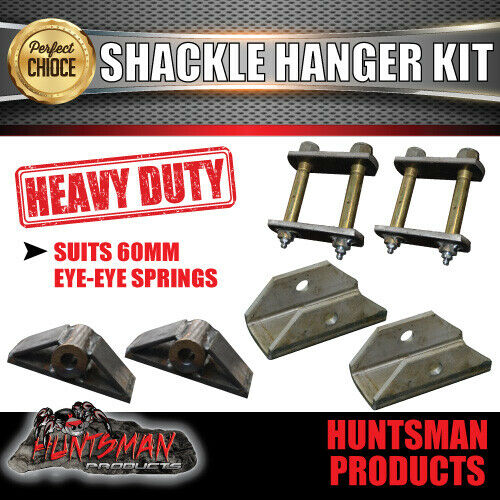

2X FRONT HEAVY DUTY HANGERS HANGERS
2X REAR EYE EXTRA STRENGTHENED HANGERS
2X OFF ROAD FISH PLATES
4X OFF ROAD 45MM X 150MM 5/8" HIGH TENSILE U BOLTS WITH NUTS AND WASHERS
2X REAR DOUBLE GREASABLE HIGH TENSILE SHACKLE PLATE BOLT SETUPS
2X GREASABLE HIGH TENSILE FRONT SHACKLE PINS
2X AXLE PADS

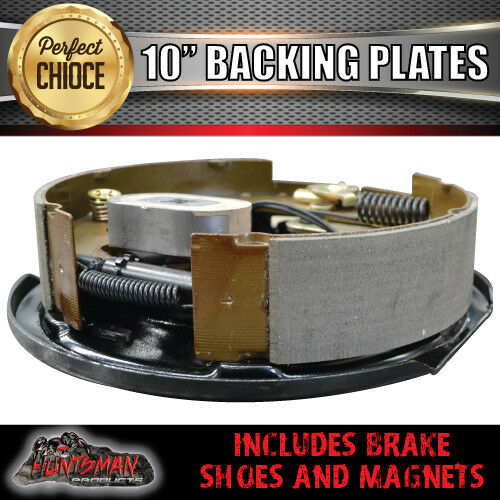

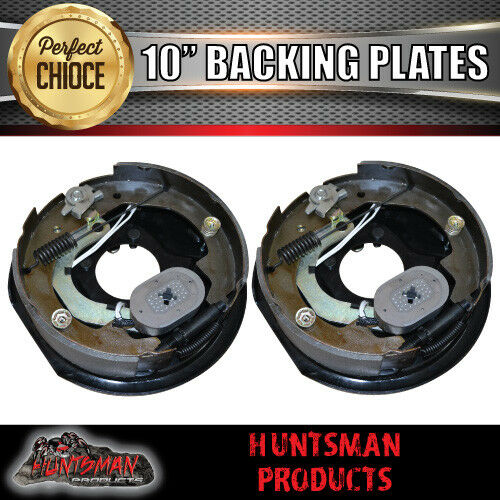

1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

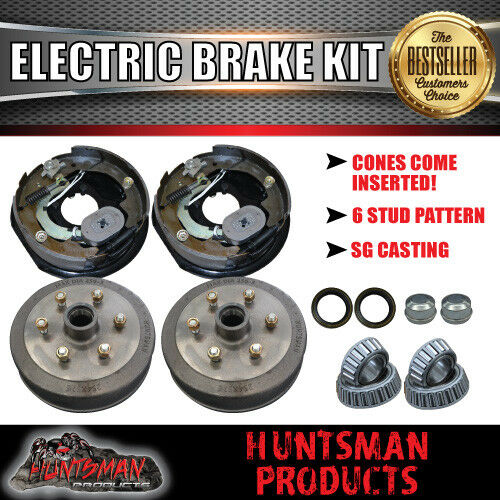

2X 10" HUB DRUMS WITH CUPS ALREADY PRESSED IN (AVAILABLE IN 6 STUD LANDCRUISER, 6 STUD D40/NP300, 5 STUD LANDSCRUISER, 5 STUD JEEP/F100, 5 STUD FORD, 5 STUD COMMODORE, 5 STUD HT OR 5 STUD HQ)
2X BEARING SETS (2X SLIM LINE INNER BEARINGS, 2X SLIM LINE OUTER BEARINGS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

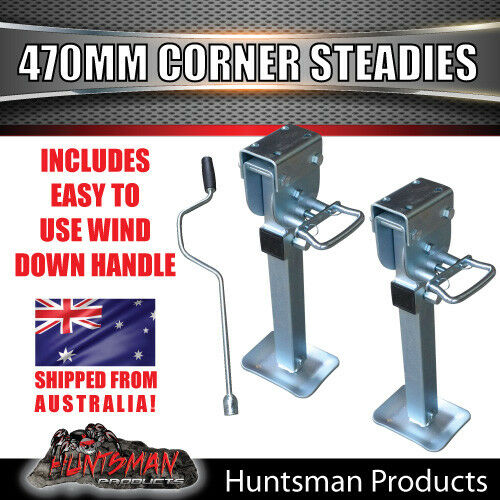

2 X DROP DOWN CORNER STEADIES WITH SWINGING BIG FOOT FOR STABILITY
1X CORNER STEADY HANDLE

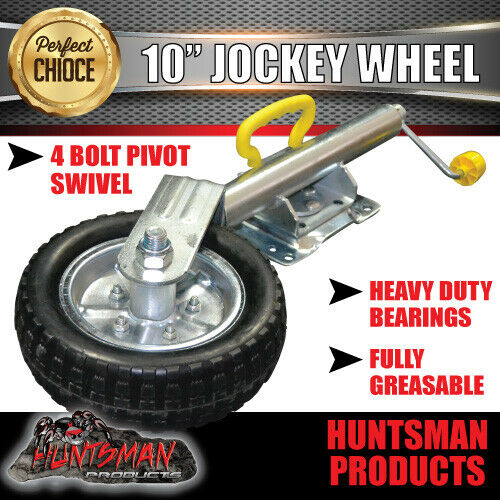

1X 10" SWING UP WELD ON JOCKEY WHEEL

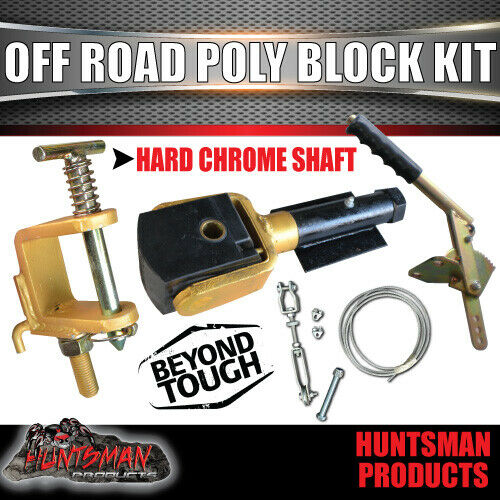

1X WELD ON POLY BLOCK OFF ROAD COUPLING WITH HARD CHROME SHAFTING.
1X POLY BLOCK CAR ADAPTOR AND SPRING PIN
1X QUICK RELEASE HAND BRAKE LEVER
8 METRES 4MM HAND BRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
1X CABLE ADJUSTER
2 X CABLE CLAMPS

ON PURCHASING PLEASE PROVIDE YOUR AXLE LENGTH AND STUD PATTERN

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE (ALLOW 5-7 BUSINESS DAYS)
JAPANESE KOYO BEARINGS $50 (CLICK ON LINK BELOW)
ASSEMBLE OF AXLE $50 PER AXLE

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0 (CLICK ON LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"

PLEASE SEE OFF ROAD SPRING ASSEMBLY SET UP BELOW

Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
