DIY 1400KG TRAILER KIT. 10" MECHANICAL DISC BRAKES. EYE TO EYE SPRINGS.

SKU : 173990079815-1
$730.00

Available



Details

DIY SINGLE AXLE TRAILER KIT
1400KG RATED
EYE TO EYE SPRINGS



STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
5 STUD L/C (5/150 PCD. 9/16" STUDS AND NUTS) + $105 12" DISCS
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) +$105 12" DISCS



AVAILABLE LENGTHS
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)
77", 1955MM TIP TO TIP (1855MM HUB FACE TO HUB FACE)
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)

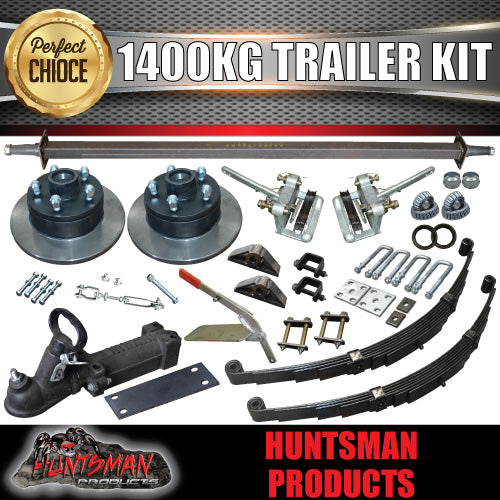

IN THIS KIT
1X 45MM SQUARE SOLID AXLE WITH MECHANICAL DISC MOUNTS ALREADY WELDED , ALSO COMES WITH SPLIT PINS & WASHERS. ( AVAILABLE IN 64", 65", 66, 67", 68", 69", 70", 71", 73", 75", 77", 78", 79", 81", 83", 85", 87", 89", 91", 93", 94", 96" ( TIP TO TIP) IF YOUR NOT SURE ON YOUR AXLE LENGTH THEN ASK US.

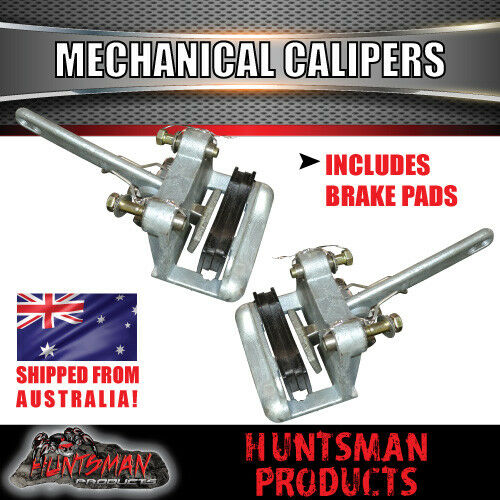

2X MECHANICAL BRAKE CALIPERS WITH CALIPER BRAKE PADS

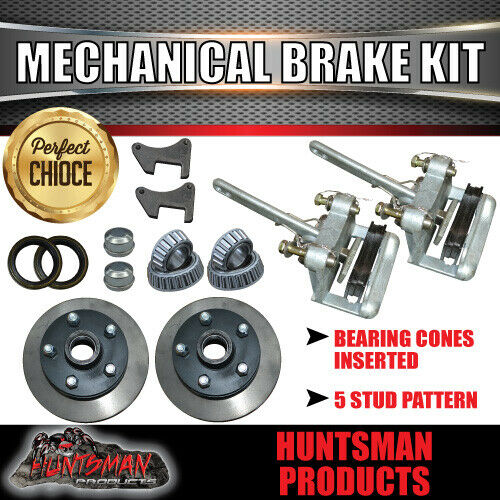

2X 10" NATURAL FINISH DISCS.  S.G CASTING.  WHEEL STUDS AND NUTS SUPPLIED  (discs come with cups already inserted)
2X SLIMLINE BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

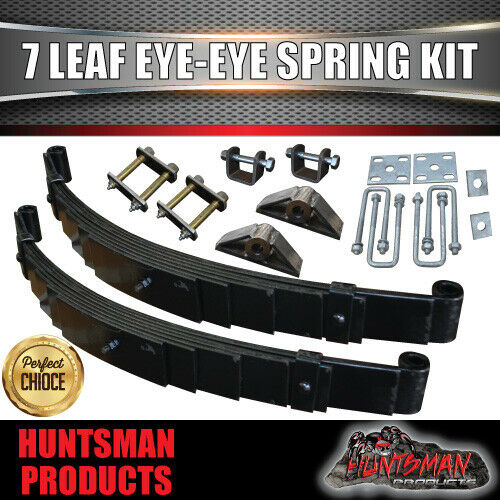

2X 7 LEAF 60MM X 6MM BLACK EYE TO EYE SHACKLE SPRINGS.  RATED 1600KG PER PAIR (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)

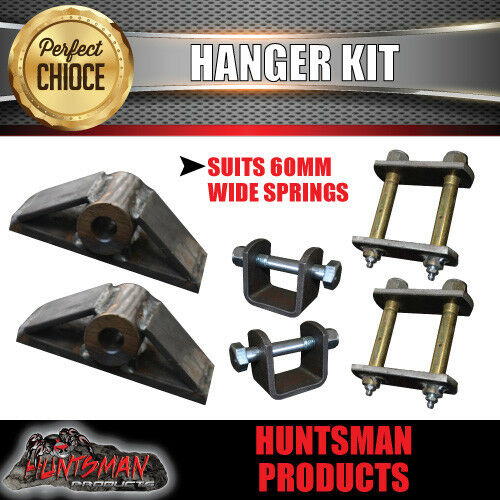

2X FRONT HANGERS WITH 5/8" HIGH TENSILE GREASABLE SPRING BOLTS
2X REAR EXTRA STRENGTH GUSSETED HANGERS
2X REAR DOUBLE 5/8" HIGH TENSILE GREASABLE SHACKLE BOLTS WITH NYLOC NUTS
2X UNISVERSAL FISH PLATES
4X 45MM X 150MM 1/2" U BOLTS WITH SPRING WASHERS AND NUTS
2X AXLE PADS

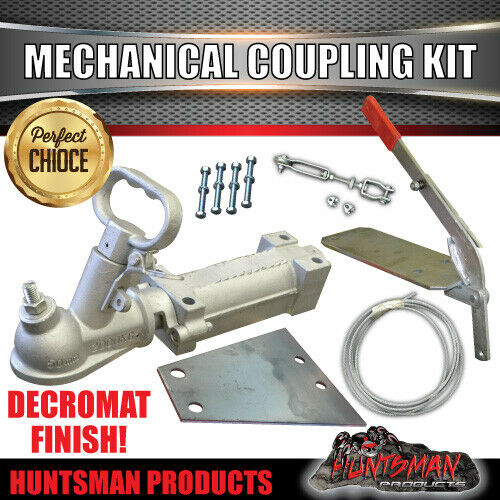

1X 2000KG 4 HOLE OVERRIDE BALL COUPLING
4X HIGH TENSILE COUPLING BOLTS WITH NYLOC NUTS
1X 4 HOLE WELD ON COUPLING BASE PLATE
1X GALVANISED MECHANICAL BASE PLATE WITH HANDBRAKE LEVER
8 METRES 4MM HANDBRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
2X CABLE CLAMPS
1X CABLE ADJUSTER
ON PURCHASING PLEASE PROVE YOUR STUD PATTERN AND AXLE LENGTH



EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE
ASSEMBLE OF AXLE $50 PER AXLE



BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0 (CLINK ON LINK BELOW)

 "CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"



SHOT PEENING

Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.



EYE TO EYE SHACKLE SPRING ASSEMBLY BELOW


Long Part of spring to the front, move rear hanger 25mm towards the rear,

Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs
