DIY 1400KG MECHANICAL DRUM BRAKED TRAILER KIT. SLIPPER SPRINGS. 78" - 96"

DIY 1400KG TRAILER KIT
MECHANICAL DRUM BRAKED SLIPPER SPRING
AXLE LENGTHS 78" - 96" (for shorter axles SKU: 175713596309)

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)

AVAILABLE LENGTHS
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)

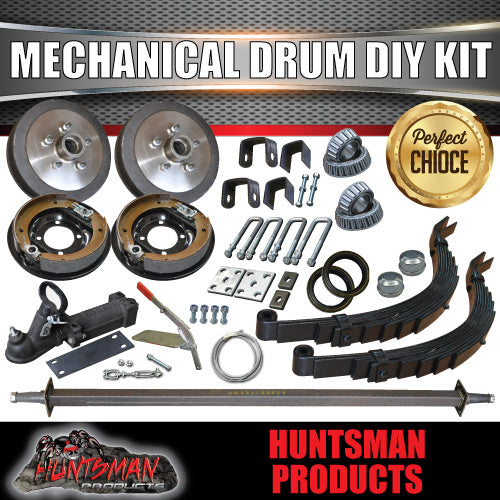

IN THIS KIT
1X 45MM SQUARE SOLID AXLE WITH MECHANICAL MOUNTS ALREADY WELDED , ALSO COMES WITH SPLIT PINS & WASHERS. AVAILABLE IN 78", 79", 81", 83",85", 87", 89", 91", 93", 94", 96" ( TIP TO TIP)

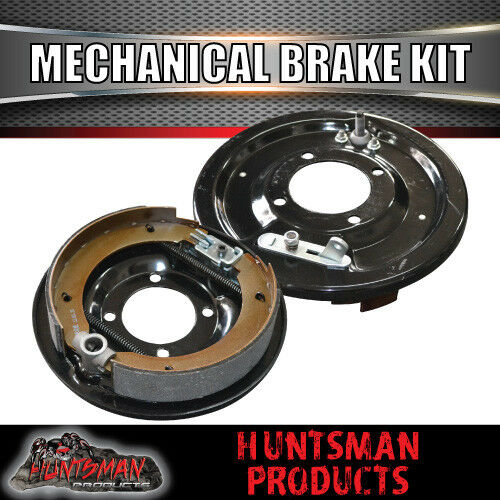

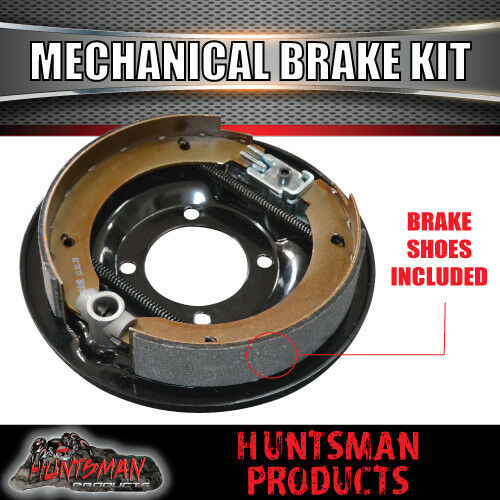

1X LEFT HAND 9" MECHANICAL BRAKE BACKING PLATE
1X RIGHT HAND 9" MECHANICAL BRAKE BACKING PLATE

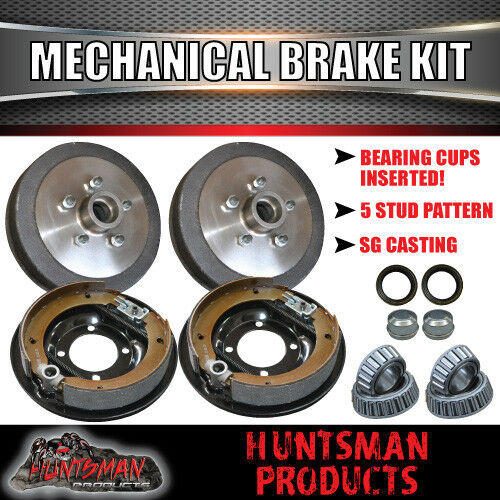

2X 9" HUB DRUMS .  S.G CASTING.  WHEEL STUDS AND NUTS SUPPLIED (drums come with cups already inserted)
2X SLIMLINE BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)

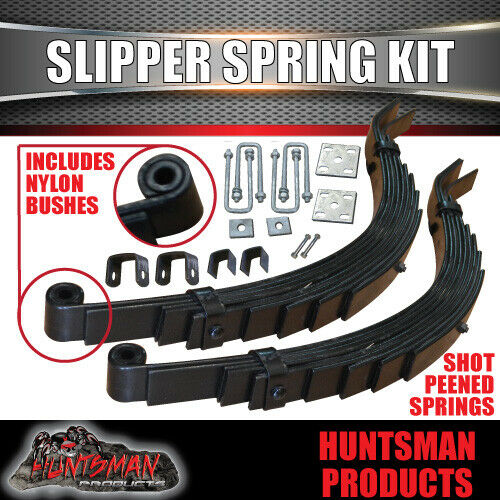

2X 9 LEAF 45MM X 6MM BLACK SLIPPER SPRINGS.  RATED 1600KG PER PAIR (springs are shot peened for extra strength)

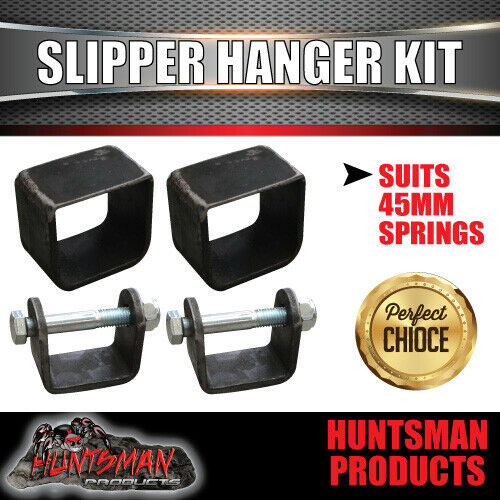

2X FRONT SLIPPER HANGERS WITH SPRING BOLTS
2X REAR SLIPPER HANGERS
2X FISH PLATES
4X 45MM X 150MM 1/2" U BOLTS WITH SPRING WASHERS AND NUTS
2X AXLE PADS

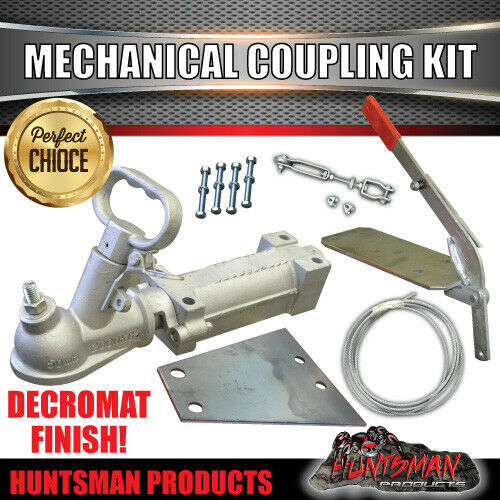

1X 2000KG 4 HOLE OVERRIDE BALL COUPLING
4X HIGH TENSILE COUPLING BOLTS WITH NYLOC NUTS
1X 4 HOLE COUPLING BASE PLATE
1X MECHANICAL BASE PLATE WITH BRAKE LEVER
8 METRES 4MM BRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
1X CABLE ADJUSTER
2X CABLE CLAMPS

ON PURCHASING PLEASE PROVE YOUR STUD PATTERN AND AXLE LENGTH

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295, DROP AXLES APPROX 5 DAYS TO ENGINEER
ASSEMBLE OF AXLE $50
JAPANESE MANUFACTURED BEARINGS $50 (CLICK ON LINK BELOW)

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0 (CLICK ON LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
