DIY 2000KG Kit. 12" L/C MECHANICAL DISC BRAKES. EYE TO EYE SPRINGS.

DIY SINGLE AXLE TRAILER KIT
2000KG RATED
EYE TO EYE SPRINGS, 12" L/C PATTERN DISCS

Stud Patterns Availble
6 STUD LANDCRUISER (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD LANDCRUISER (5/150 PCD, 9/16" STUDS AND NUTS)

AXLE LENGTHS AVAILABLE
PLEASE NOTE: Minimum clearance from hub face to chassis per side: 155mm
Hub face to back of electric backing plate per side: 155mm
1700MM TIP TO TIP (hub face to hub face 1525mm)
1750MM TIP TO TIP (hub face to hub face 1575mm)
1800MM TIP TO TIP (hub face to hub face 1625mm)
1850MM TIP TO TIP (hub face to hub face 1675mm)
1900MM TIP TO TIP (hub face to hub face 1725mm)
1950MM TIP TO TIP (hub face to hub face 1775mm)
2000MM TIP TO TIP (hub face to hub face 1825mm)
2050MM TIP TO TIP (hub face to hub face 1875mm)
2100MM TIP TO TIP (hub face to hub face 1925mm)
2150MM TIP TO TIP (hub face to hub face 1975mm)
2200MM TIP TO TIP (hub face to hub face 2025mm)
2250MM TIP TO TIP (hub face to hub face 2075mm)
2300MM TIP TO TIP (hub face to hub face 2125mm)
2350MM TIP TO TIP (hub face to hub face 2175mm)
2385MM TIP TO TIP (hub face to hub face 2210mm)
2445MM TIP TO TIP (hub face to hub face 2270mm)
2475MM TIP TO TIP (hub face to hub face 2300mm)
CUSTOM AXLE LENGTH UP TO 2500MM TIP TO TIP +$50 PER KIT
Custom Axle lengths will need to be manufactured which will take approx 5 extra business days for dispatch on top of the current dispatch times

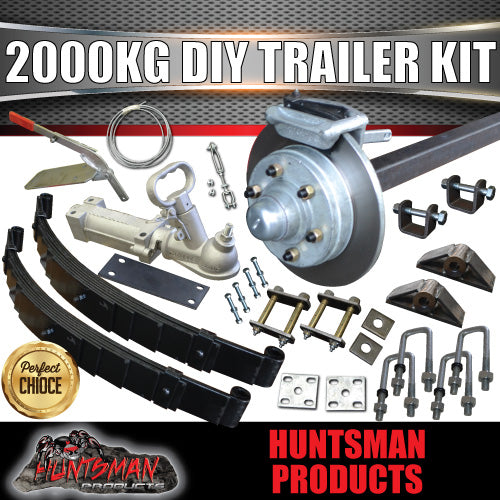

IN THIS KIT
1X 2 TONNE 50MM SQUARE SOLID ENGINEERED AXLE WITH 12" MECHANICAL DISC BRAKES ALREADY ASSEMBLED

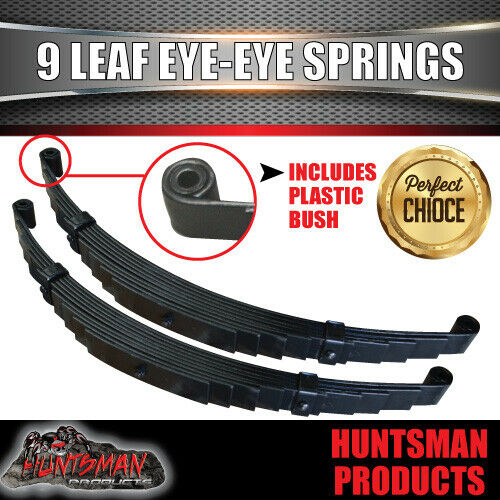

2X 9 LEAF 60MM X 6MM BLACK EYE TO EYE SPRINGS.  RATED 2200KG PER PAIR (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)

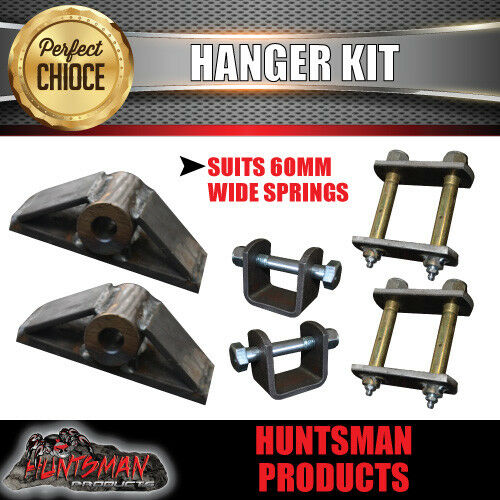

2X FRONT HANGERS WITH 5/8" GREASABLE HIGH TENSILE SPRING BOLTS
2X REAR EXTRA STRENGTH GUSSETED HANGERS
2X REAR DOUBLE HIGH TENSILE SHACKLE BOLTS (FULLY GREASABLE)
2X OFF ROAD SLOTTED FISH PLATES
4X 50MM X 150MM 5/8" HIGH TENSILE U BOLTS WITH SPRING WASHERS AND NUTS
2X AXLE PADS

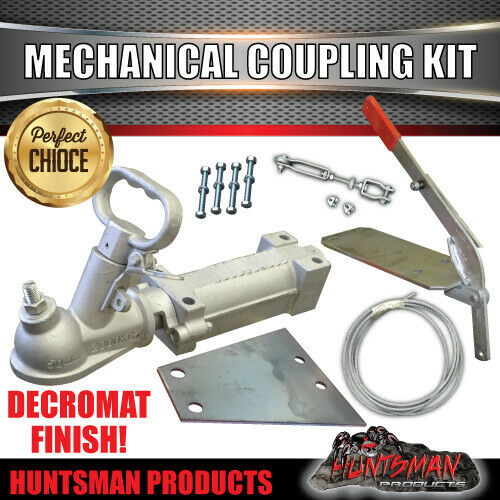

1X 2000KG 4 HOLE OVERRIDE BALL COUPLING
4X HIGH TENSILE COUPLING BOLTS WITH NYLOC NUTS
1X 4 HOLE COUPLING WELD ON BASE PLATE
1X GALVANISED MECHANICAL BASE PLATE WITH HANDBRAKE LEVER
8 METRES 4MM HANDBRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
2X CABLE CLAMPS
1X CABLE ADJUSTER

ON PURCHASING PLEASE PROVE YOUR STUD PATTERN AND AXLE LENGTH

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295.  DROP AXLE TAKES APPROX 5 BUSINESS DAYS
UPGRADE TO JAPANESE BEARINGS $90.0 (CLICK ON LINK BELOW)

 "UPGRADE TO JAPANESE MANUFACTURED BEARINGS BY CLICKING HERE"

SHOT PEENING

Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.

EYE TO EYE SHACKLE SPRING ASSEMBLY BELOW

Long Part of spring to the front, move rear hanger 25mm towards the rear,

Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs
