1400Kg Galvanised Bare Gullwing Boat Trailer Axle

SKU : 362829070209
$300.00

Available



Shipping can be estimated during check out

Details

GALVANISED GULLWING TRAILER AXLE

MINIMUM LENGTH: 1880MM TIP TO TIP

MAXIMUM LENGTH: 3000MM TIP TO TIP



TO SUIT BEARINGS

INNER BEARINGS ID:34.9MM (L68149)

OUTER BEARINGS ID:22MM (L12710)



RATED 1400KG

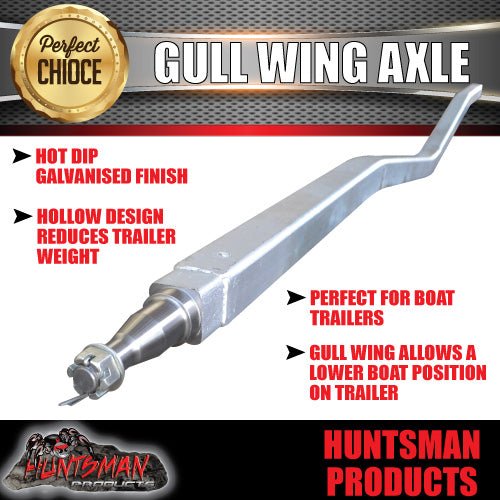

ADVANTAGES OF GULLWING AXLES

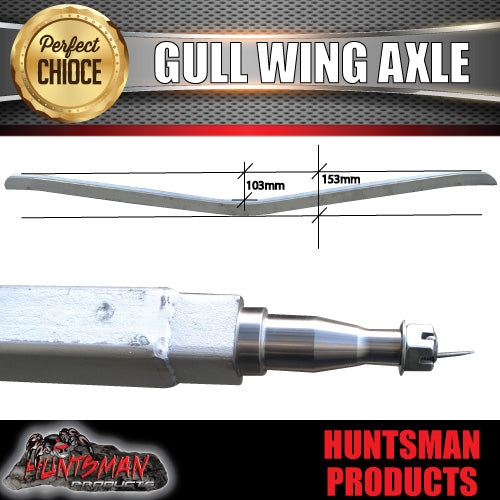

LOWER YOUR CENTRE OF BOAT POSITION BY 103MM

CENTRE OF GRAVITY BECOMES SIGNIFICANTLY LOWER

ROLLERS ARE LOWERED WHEN ROLLER BRACKET ARE BOLTED TO THE V'S

HOLLOW GALVANISED TUBE LOWERS OVERALL WEIGHT OF TRAILER



OPTIONS FOR THESE AXLES

COMPLETE WITH GALVANISED DACROMET LAZY HUBS

COMPLETE WITH GALVANISED MECHANICAL DISC BRAKES

COMPLETE WITH GALVANISED HYDRAULIC DISC BRAKES

COMPLETE WITH DEEMAXX STAINLESS HYDRAULIC DISC BRAKES






THIS AXLE USED BY MANY TRAILER MANUFACTURERS AUSTRALIA WIDE

IF YOU HAVE A HUB FACE TO HUB FACE MEASUREMENT ADD 100MM AND THAT WILL GIVE YOUR OVER ALL LENGTH MEASUREMENT

COMES WITH AXLE NUT AND SPLIT PIN



Please note

These 50mm x 5mm Tube is hot dipped galvanised.  They are then cut down to the required length and specially machined stub axles are inserted and welded in.  Cold galvanise is then applied to the welded stub ends
