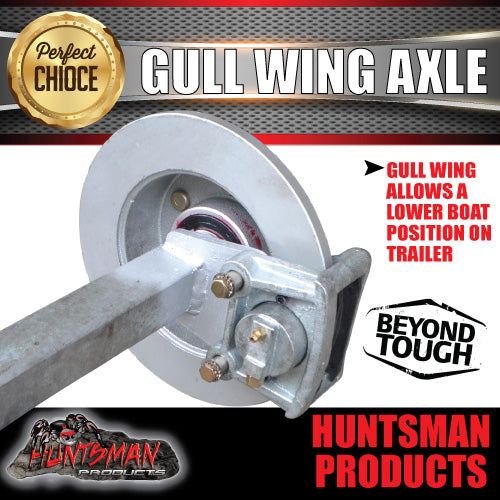

2000Kg Galvanised Hydraulic Disc Gullwing Boat Trailer Axle

GALVANISED GULLWING TRAILER AXLE
MINIMUM LENGTH: 1780MM HUB FACE TO HUB FACE
MAXIMUM LENGTH: 2900MM HUB FACE TO HUB FACE

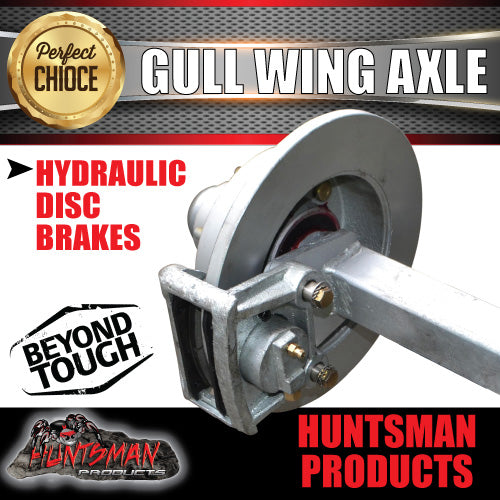

COMPLETE WITH 12" HYDRAULIC DISC BRAKES WITH STAINLESS STEEL PISTONS & MARINE DACROMET DISCS


Stud Patterns Availble

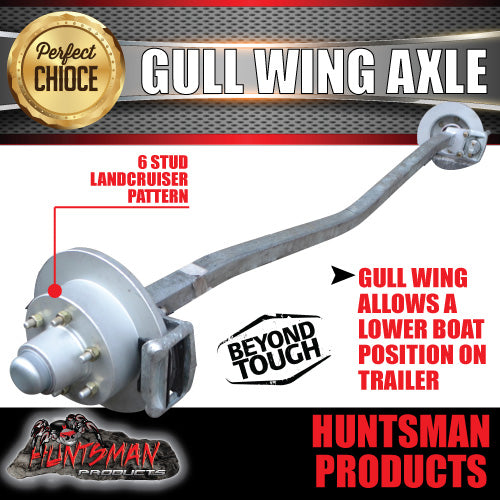

6 STUD LANDCRUISER (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD LANDCRUISER (5/150 PCD, 9/16" STUDS AND NUTS)

RATED: 2000KG


ADVANTAGES OF GULLWING AXLES
LOWER YOUR CENTRE OF BOAT POSITION BY 103MM
CENTRE OF GRAVITY BECOMES SIGNIFICANTLY LOWER
ROLLERS ARE LOWERED WHEN ROLLER BRACKET ARE BOLTED TO THE V'S

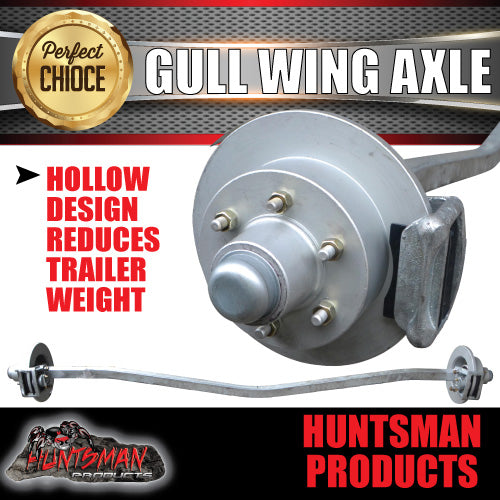

HOLLOW GALVANISED TUBE LOWERS OVERALL WEIGHT OF TRAILER


IF YOU HAVE A HUB FACE TO HUB FACE MEASUREMENT ADD 175MM AND THAT WILL GIVE YOUR OVER ALL LENGTH MEASUREMENT


Please note
These 50mm x 5mm Tube is hot dipped galvanised. They are then cut down to the required length and specially machined stub axles are inserted and welded in. Cold galvanise is then applied to the welded stub ends


BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $90.0 (CLICK ON LINK BELOW)

 "UPGRADE TO JAPANESE MANUFACTURED BEARINGS BY CLICKING HERE"
