1400Kg Galvanised Mechanical Disc Gullwing Boat Trailer Axle

SKU : 174176184584-6
$550.00

Available



Details

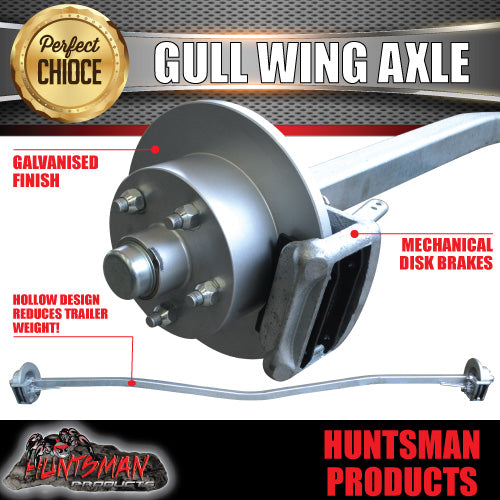

GALVANISED GULLWING TRAILER AXLE
MINIMUM LENGTH: 1850MM HUB FACE TO HUB FACE
MAXIMUM LENGTH: 2900MM HUB FACE TO HUB FACE

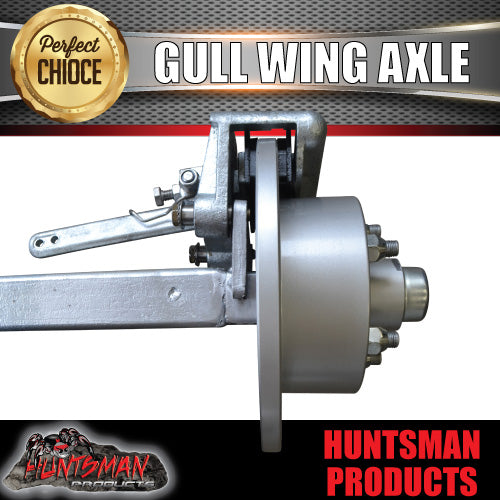

COMPLETE WITH MECHANICAL DISC BRAKES / DACROMET DISCS

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) + $120 12" DISCS
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$120 12" DISCS


AXLE COMES COMPLETELY ASSEMBLED
COMES FITTED WITH HUNTSMAN PRODUCTS BRAKE PADS
AUTOMOTIVE GREASE USED ON BEARINGS


SLIMLINE BEARINGS FITTED
INNER BEARINGS ID:34.9MM (L68149)
OUTER BEARINGS ID:22MM (L12749)RE

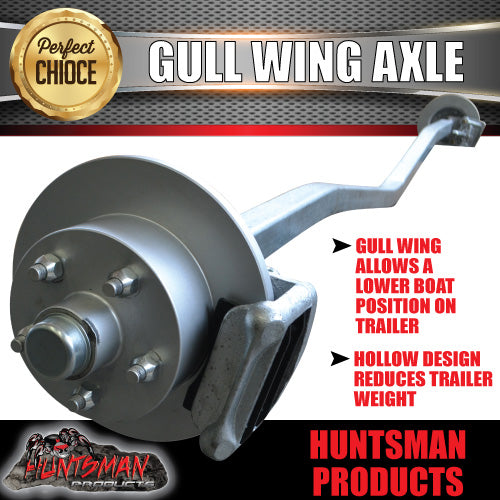

ADVANTAGES OF GULLWING AXLES

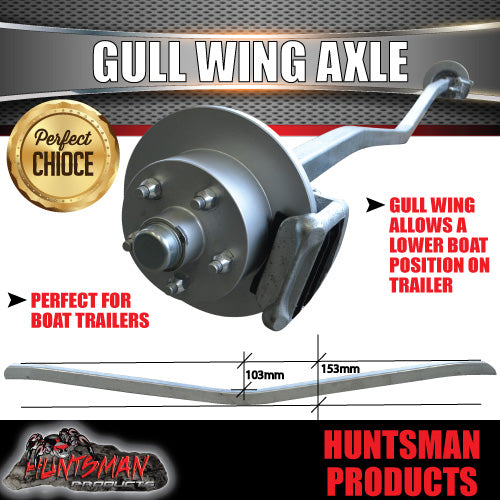

LOWER YOUR CENTRE OF BOAT POSITION BY 103MM
CENTRE OF GRAVITY BECOMES SIGNIFICANTLY LOWER
ROLLERS ARE LOWERED WHEN ROLLER BRACKET ARE BOLTED TO THE V'S
HOLLOW GALVANISED TUBE LOWERS OVERALL WEIGHT OF TRAILER


OPTIONS FOR THESE AXLES
COMPLETE WITH GALVANISED DACROMET LAZY HUBS
COMPLETE WITH GALVANISED MECHANICAL DISC BRAKES
COMPLETE WITH GALVANISED HYDRAULIC DISC BRAKES
COMPLETE WITH STAINLESS HYDRAULIC DISC BRAKES

THIS AXLE USED BY MANY TRAILER MANUFACTURERS AUSTRALIA WIDE
IF YOU HAVE A HUB FACE TO HUB FACE MEASUREMENT ADD 100MM AND THAT WILL GIVE YOUR OVER ALL LENGTH MEASUREMENT
COMES WITH AXLE NUT AND SPLIT PIN

Please note

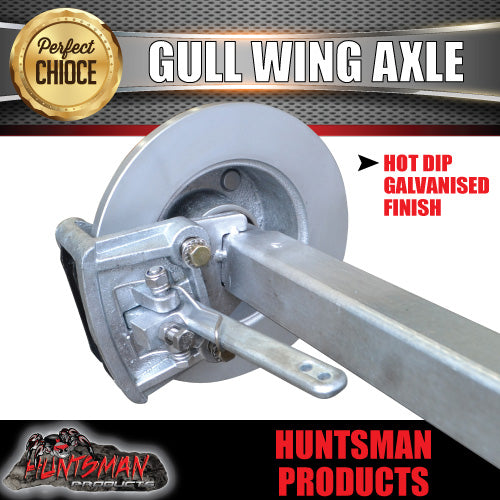

These 50mm x 5mm Tube is hot dipped galvanised. They are then cut down to the required length and specially machined stub axles are inserted and welded in. Cold galvanise is then applied to the welded stub ends


BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $40.0 (CLICK ON LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
