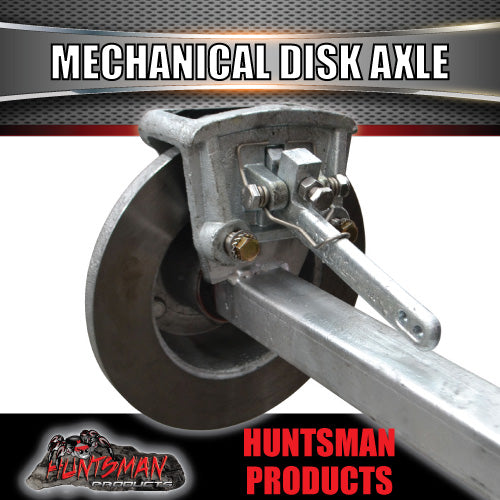

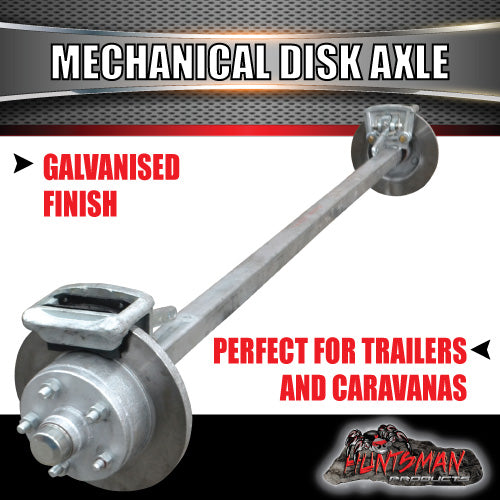

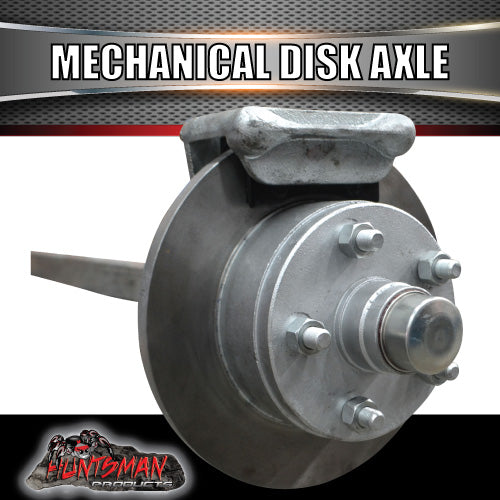

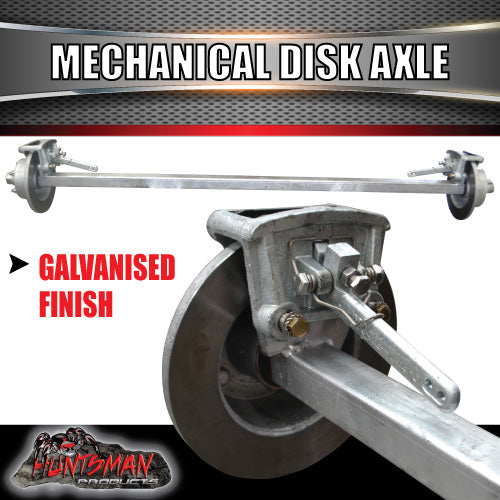

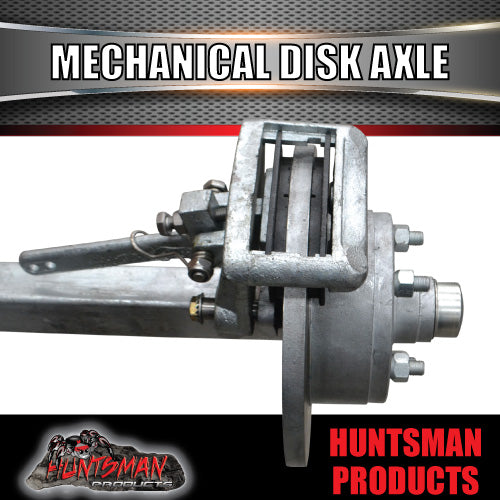

Galvanised 45mm Square Mechanical Disc Braked Trailer Axle. 1400Kg rated 64"-77"

1400KG GALVANISED COMPLETE MECHANICAL DISC BRAKED AXLE
SOLID 45MM SQUARE AXLE
64" - 77" AXLES (for longer axles SKU: 192698545257)


AVAILABLE LENGTHS
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)
77", 1955MM TIP TO TIP (1855MM HUB FACE TO HUB FACE)


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) + $120 12" DISCS
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$120 12" DISCS


AXLE COMES COMPLETELY ASSEMBLED
COMES WITH MARINE SEALS
AUTOMOTIVE GREASE USED ON BEARINGS

SLIMLINE BEARINGS FITTED
INNER BEARINGS ID:34.9MM (L68149)
OUTER BEARINGS ID:22MM (L12710)

PLEASE NOTE: Axle and calipers are hot dipped galvanised. The disc mounts are then welded to the axle and cold galvanise is applied to welded mount area. The discs are Galvanised/Decromat Marine Coating.

EXTRAS AVAILABLE
JAPANESE MANUFACTURED BEARINGS $50 (CLICK ON THE LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
