Natural 40mm Square Mechanical Disc Braked Trailer Axle. 1000Kg 78"-96" Axles

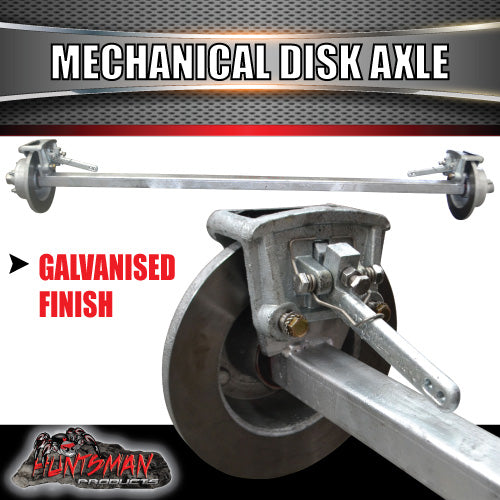

COMPLETE MECHANICAL DISC BRAKED AXLE
40MM SQUARE SOLID
(1000KG RATED)


AXLE LENGTHS 78" - 96" (for shorter axles ebay item: 171090252475)


AVAILABLE LENGTHS
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)


AVAILABLE PATTERNS
FORD 5 STUD, 5/114.3 PCD, 1/2" STUDS AND NUTS
HOLDEN HT 5 STUD, 5/108 PCD, 7/16" STUDS AND NUTS
HOLDEN HQ 5 STUD, 5/120.65 PCS, 7/16" STUDS AND NUTS
HOLDEN COMMODORE 5 STUD, 5/120 PCD, 7/16" STUDS AND NUTS
12" 6 STUD, 6/139.7 PCD, 1/2" STUDS AND NUTS +$105
12" 5 STUD LANDCRUISER, 5/108 PCD, 9/16" STUDS AND NUTS +$105

BEARINGS
LM67048/10 & LM11949/10
Inner Bearing Diameter 31.75
Outer Bearing Diameter 19.05

THIS AXLE USED BY MANY TRAILER, CARAVAN AND CAMPER TRAILER MANUFACTURES AUSTRALIA WIDE.

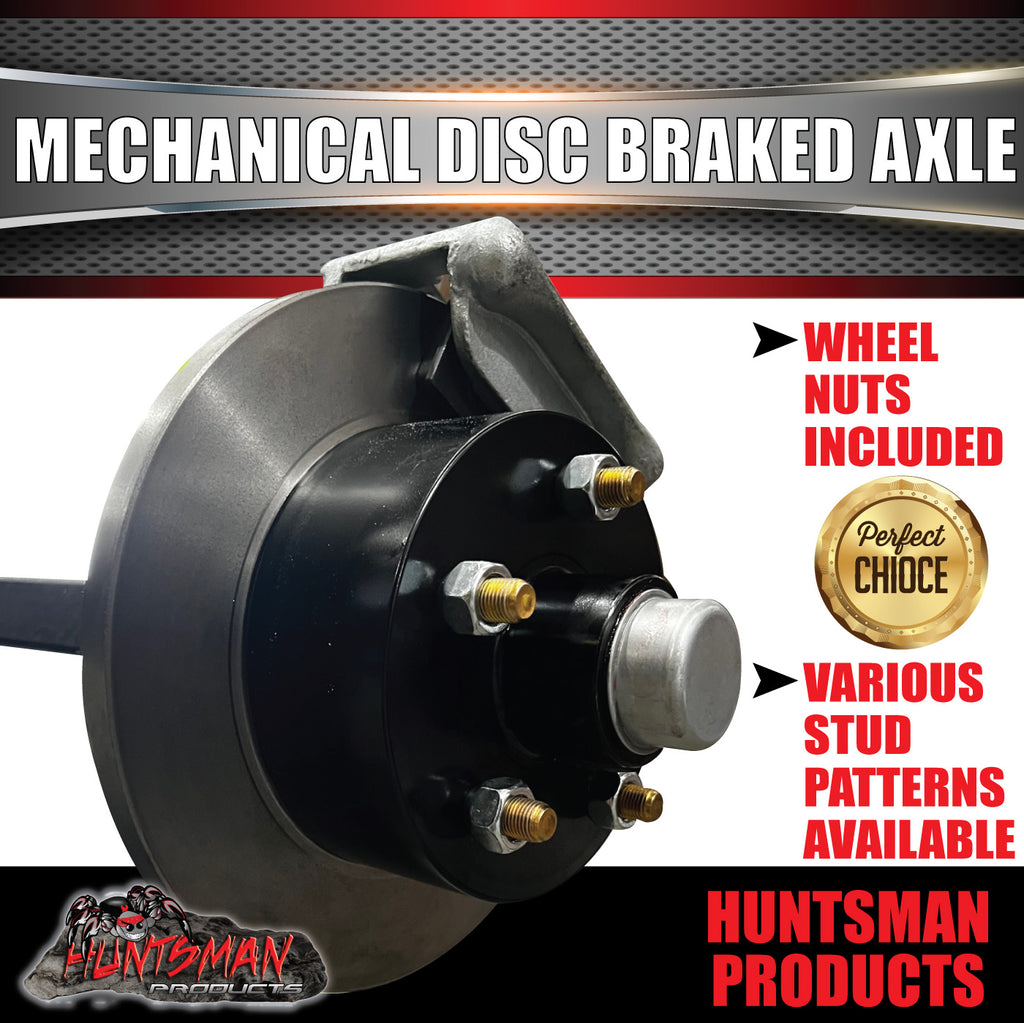

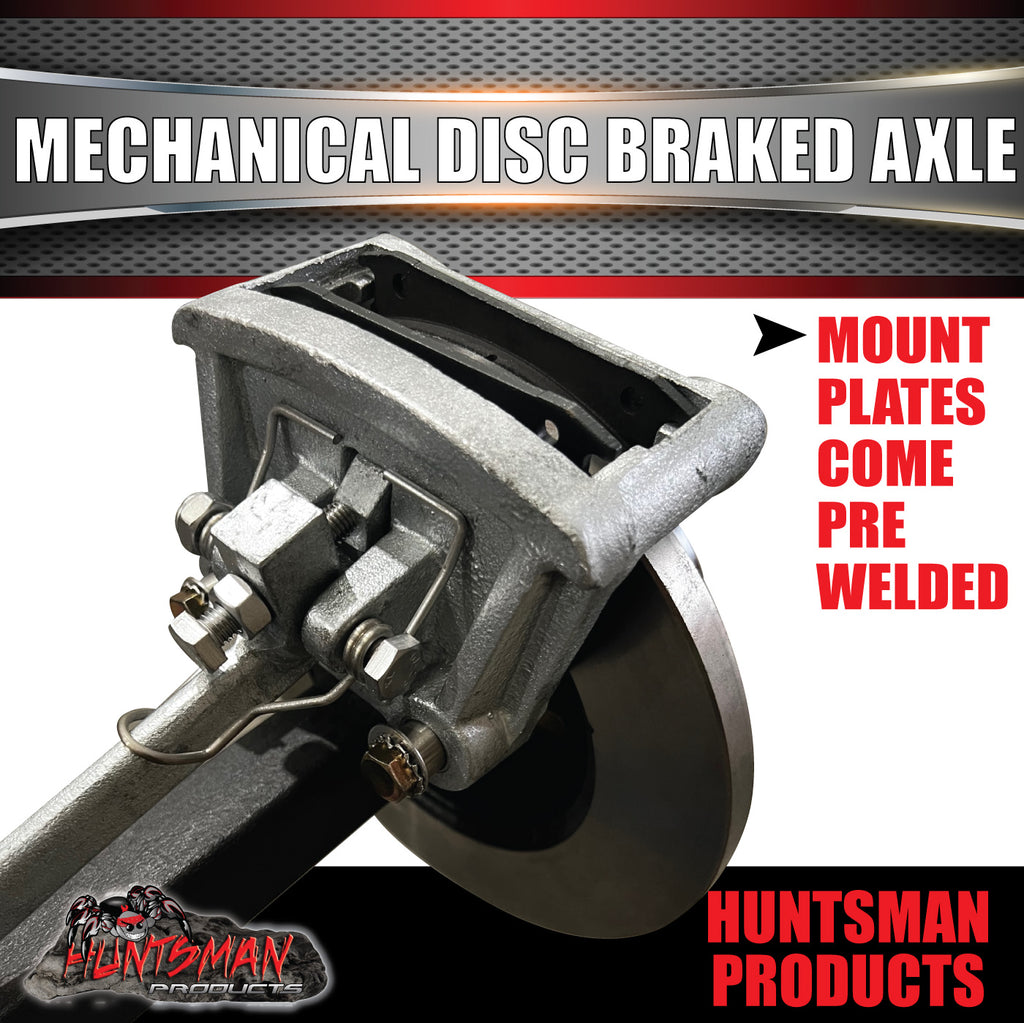

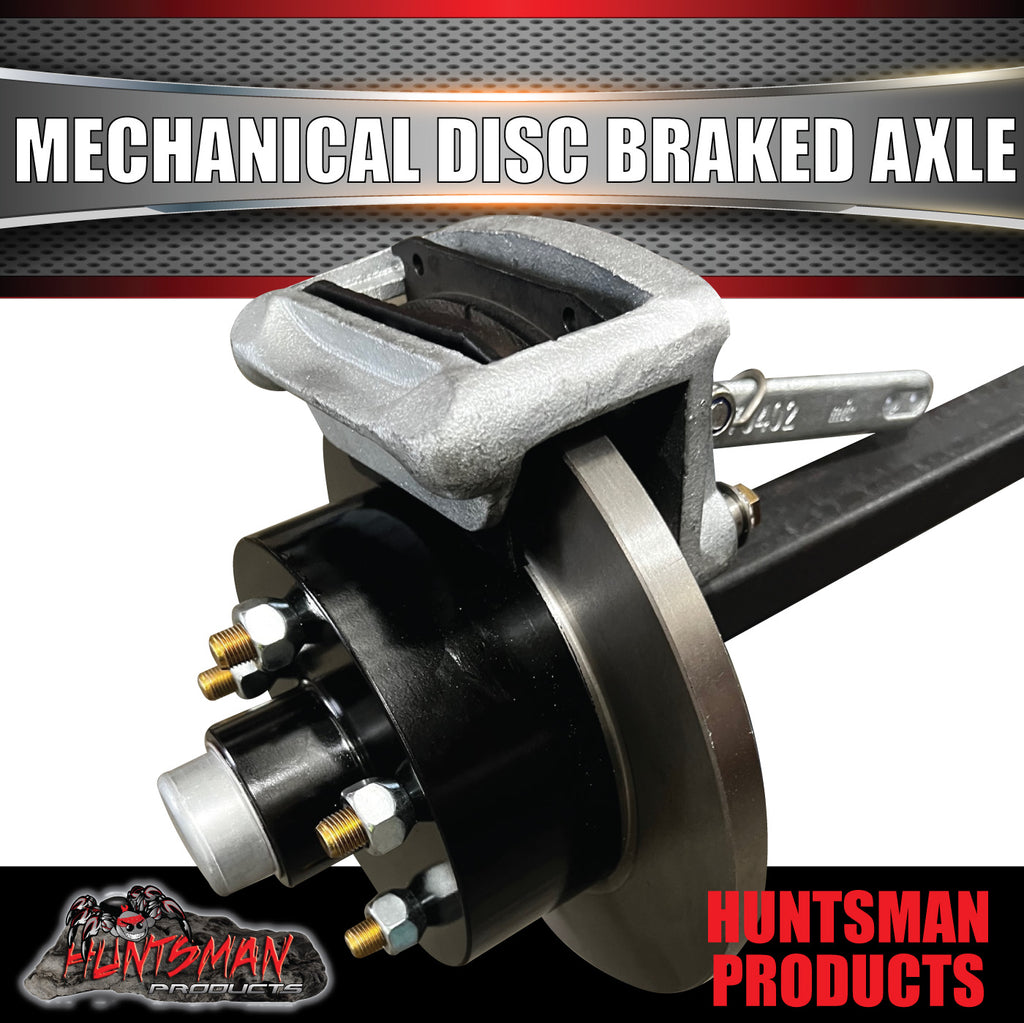

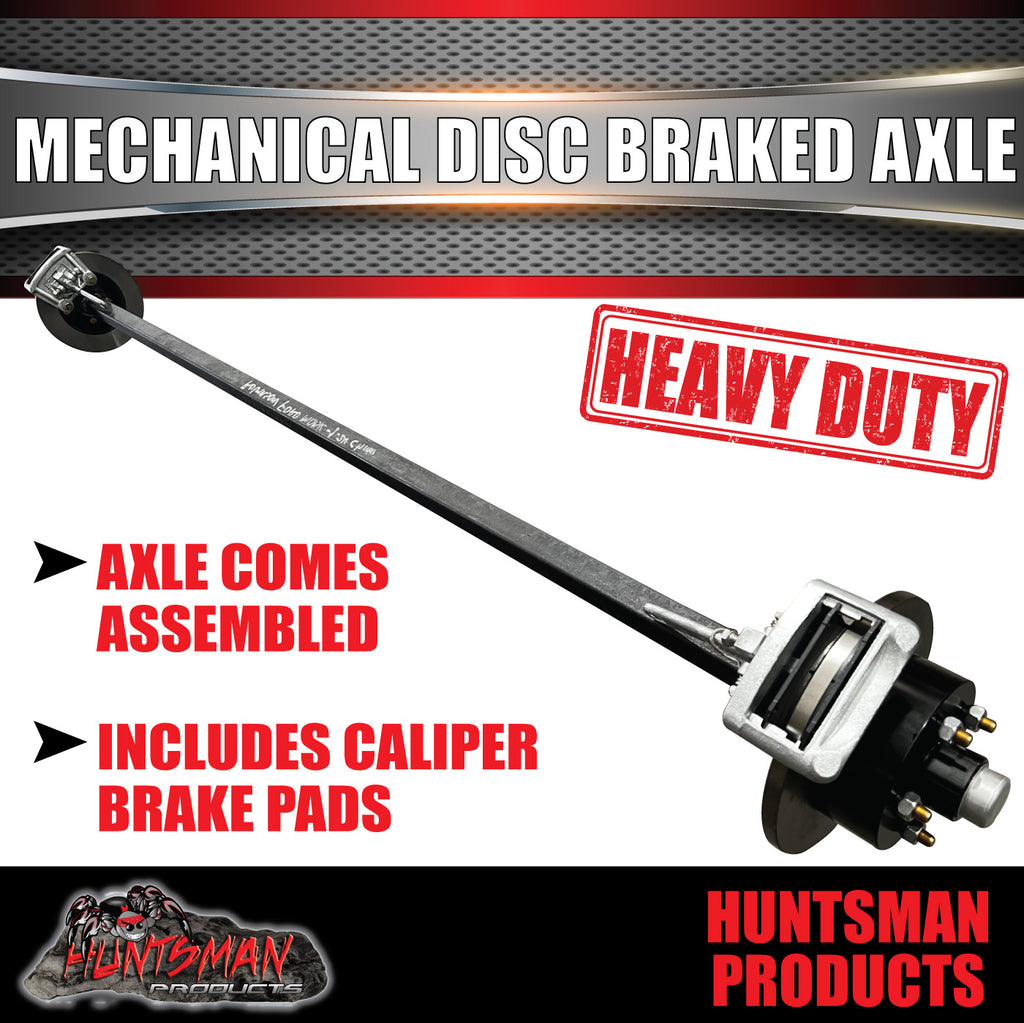

Axle comes complete as pictured

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE
JAPANESE MANUFACTURED BEARINGS $50 (CLICK ON THE LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
