DIY 4200Kg Tri Axle Trailer Kit 10" Electric Brakes, R/Roller, 45mm Axles 64" - 77"

4200KG DIY TRI AXLE TRAILER KIT
ROCKER ROLLER LOAD SHARING SUSPENSION, TRI ELECTRIC BRAKED
AXLE LENGTHS 64" - 77" (for shorter axles SKU: 364246311416)

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)
D40/NP300/PATHFINDER (6/114.3 PCD, 1/2" STUDS AND NUTS)
F100/JEEP (5/127 PCD, 1/2" STUDS AND NUTS)

AVAILABLE LENGTHS
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)
77", 1955MM TIP TO TIP (1855MM HUB FACE TO HUB FACE)

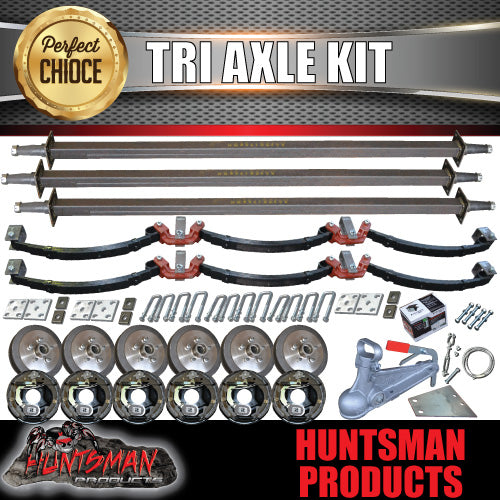

IN THIS KIT
3X 45MM SQUARE AXLES WITH ELECTRIC BRAKE MOUNTS WELDED TO AXLE, 1400KG RATED EACH (PLEASE SPECIFY AXLE LENGTH OR IF YOUR NOT SURE ASK US)
( AVAILABLE IN 64", 65", 66, 67", 68",69", 70", 71", 73", 75", 77" ( TIP TO TIP)

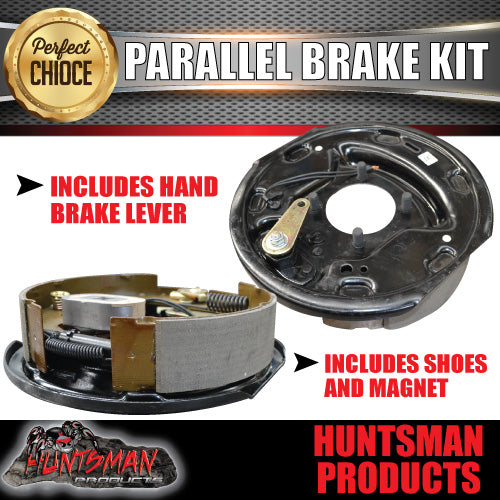

6X 10" ELECTRIC BACKING PLATES WITH WASHERS AND STAR NUTS FOR FIXING TO BRAKE MOUNTS (ALL BACKING PLATES COME WITH HANDBRAKE LEVERS)

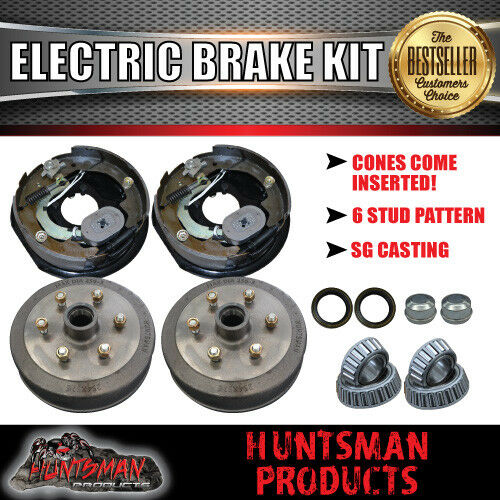

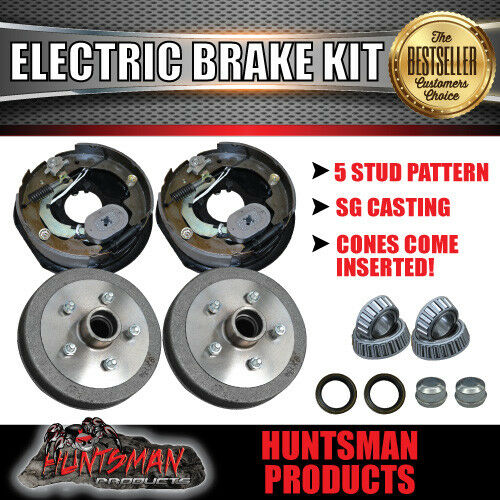

6X 10" ELECTRIC BRAKE DRUMS. (CUPS ALREADY INSERTED INTO DRUMS)
6X SLIMLINE BEARING KITS INCLUDING DUST SEALS AND DUST CAPS
ALL WHEEL NUTS

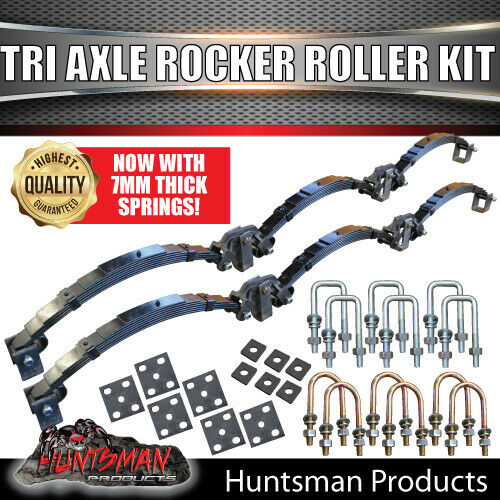

1X 6 LEAF 4.5 TONNE TRI AXLE LOAD SHARING ROCKER ROLLER SPRING SET WITH GREASABLE SHACKLES AND HANGERS ALREADY ASSEMBLED (springs are shot peened for extra strength)
6X UNIVERSAL FISH PLATES
16 X 45MM x 150MM SQUARE 5/8" HIGH TENSILE U BOLTS WITH NUTS AND WASHERS
6 X AXLE PADS

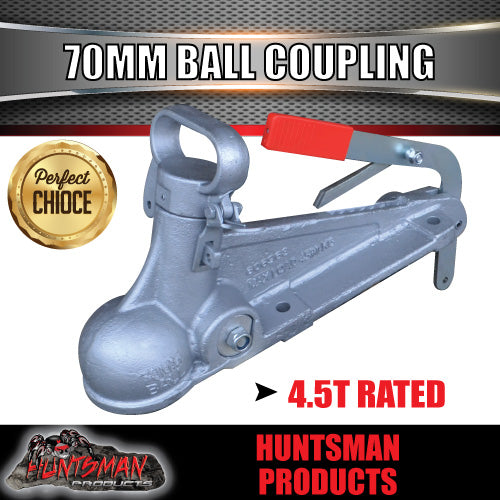

1X 4500KG 70MM ELECTRIC BALL COUPLING WITH HAND BRAKE LEVER (6000KG RING COUPLING AVAILABLE UPON REQUEST FOR NO EXTRA CHARGE)
COUPLING CTA APPROVAL NUMBER: CTA-061054
1 X 8M HAND BRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
1X CABLE ADJUSTER
1X 4 HOLE COUPLING WELD ON PLATE
2X CABLE CLAMPS
4 X 12MM HIGH TENSILE BOLTS WITH NUTS AND WASHERS FOR COUPLINGS

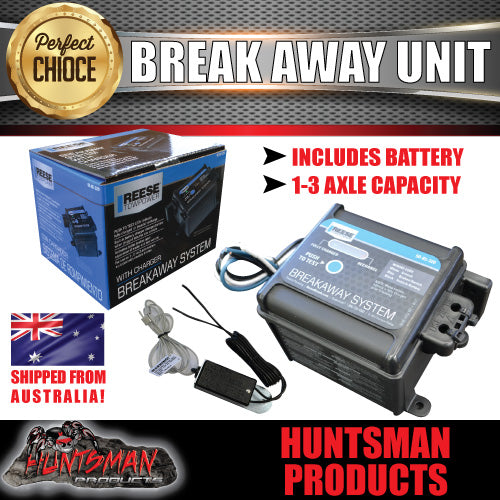

1X BRAKE AWAY UNITS
NOT SURE THE AXLE SIZE YOU NEED? ASK US FOR ASSISTANCE

On ordering please supply your stud pattern and axle length


EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE. DROP AXLES APPROX 5 DAYS TO ENGINEER
ASSEMBLE OF AXLE $50 PER AXLE
JAPANESE MANUFACTURED BEARINGS $150 (CLICK ON LINK BELOW)

 CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS
