DIY 4500Kg Tri Axle Trailer Caravan Kit. 12" Electric Brakes. Stub Axles, R/Roller

DIY TRI AXLE TRAILER KIT
ROCKER ROLLER LOAD SHARING SUSPENSION, 2 TONNE STUB AXLES
4500KG RATED.

Save money on making your own axles and freight costs


Stud Patterns Available
6 STUD LANDCRUISER (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD LANDCRUISER (5/150 PCD, 9/16" STUDS AND NUTS)

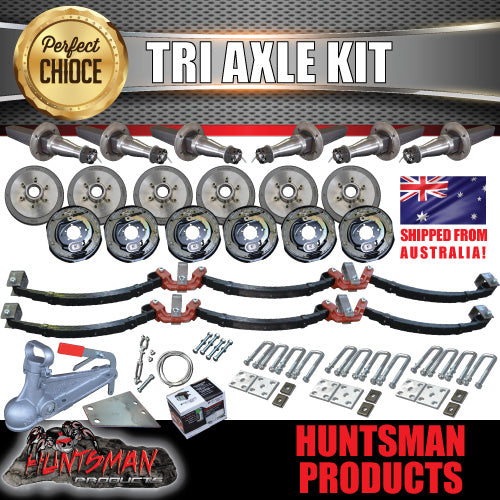

IN THIS KIT

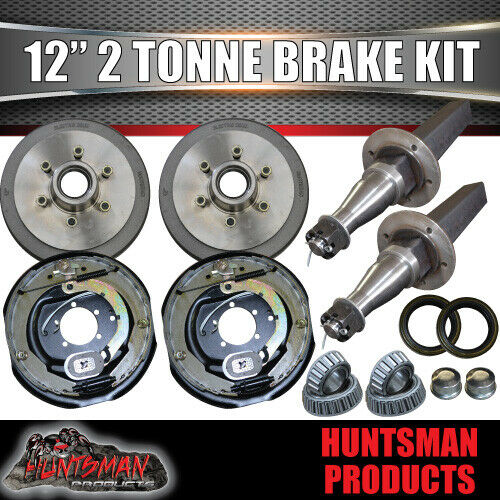

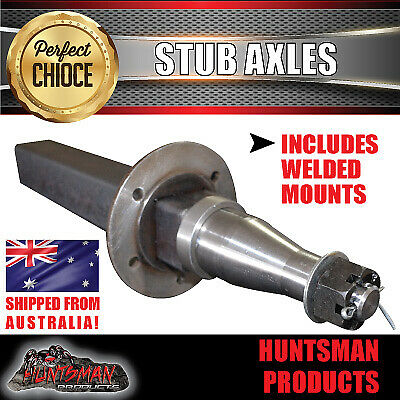

6X 50MM X 450MM SQUARE SOLID STUB AXLES WITH 12" ELECTRIC BRAKE MOUNTS WELDED

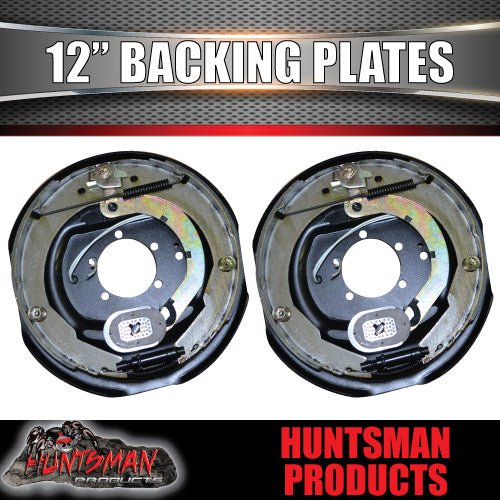

6X 12" ELECTRIC BACKING PLATES WITH WASHERS AND STAR NUTS FOR FIXING TO BRAKE MOUNTS (EACH BACKING PLATE COMES WITH HANDBRAKE LEVERS)
6X 2 TONNE BEARING KITS INCLUDING DUST SEALS AND DUST CAPS
ALL WHEEL NUTS

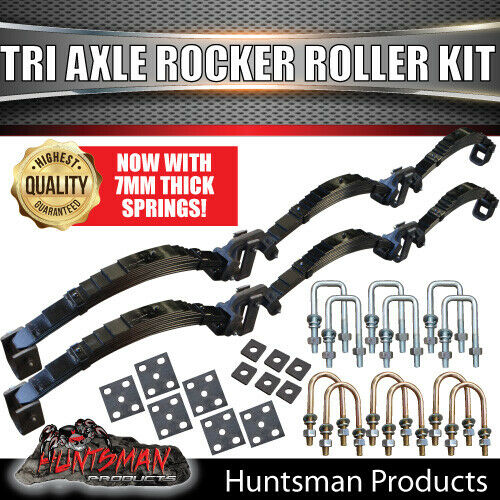

1X 9 LEAF 6 TONNE TRI AXLE ROCKER ROLLER SPRING SET WITH GREASABLE SHACKLES AND HANGERS ALREADY ASSEMBLED. RATED 6750KG. (springs are shot peened for extra strength)
6X UNIVERSAL 5/8" OFF ROAD FISH PLATES

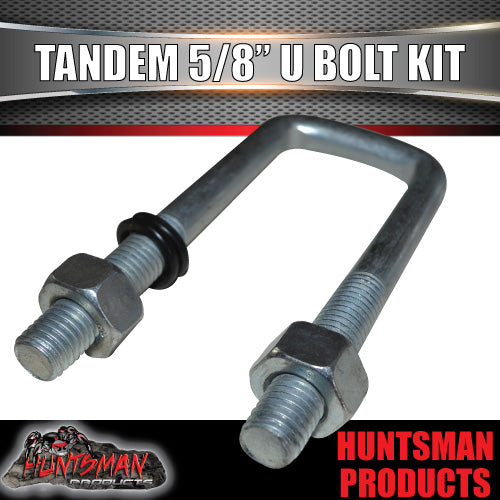

16 X 50MMX 170MM SQUARE 5/8" HIGH TENSILE U BOLTS WITH NUTS AND WASHERS (63MM U BOLTS AVAILABLE ON REQUEST)
6 X AXLE PADS

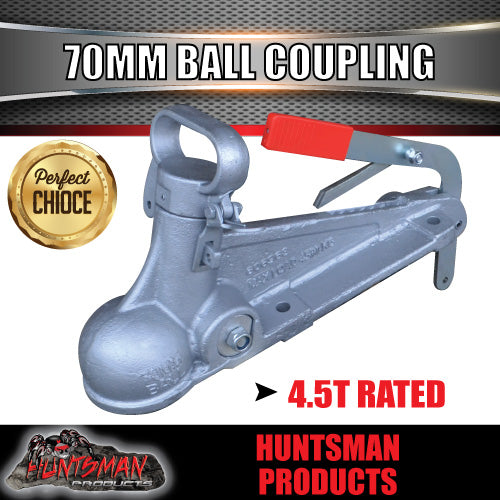

1X 4500KG ELECTRIC BALL COUPLING WITH HANDBRAKE LEVER (6000KG RING COUPLING AVAILABLE UPON REQUEST FOR NO EXTRA CHARGE)
COUPLING CTA APPROVAL NUMBER: CTA-061054
1 X 8 METRES HAND BRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
1X CABLE ADJUSTER
1X 10MM THICK 4 HOLE COUPLING WELD ON PLATE
2X CABLE CLAMPS
4 X 12MM HIGH TENSILE BOLTS WITH NUTS AND WASHERS FOR COUPLING
1X BRAKE AWAY UNIT
On ordering please supply your stud pattern

EXTRAS AVAILABLE
UPGRADE TO JAPANESE MANUFACTURED BEARINGS $270 (HIGHLY RECOMMENDED)

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
